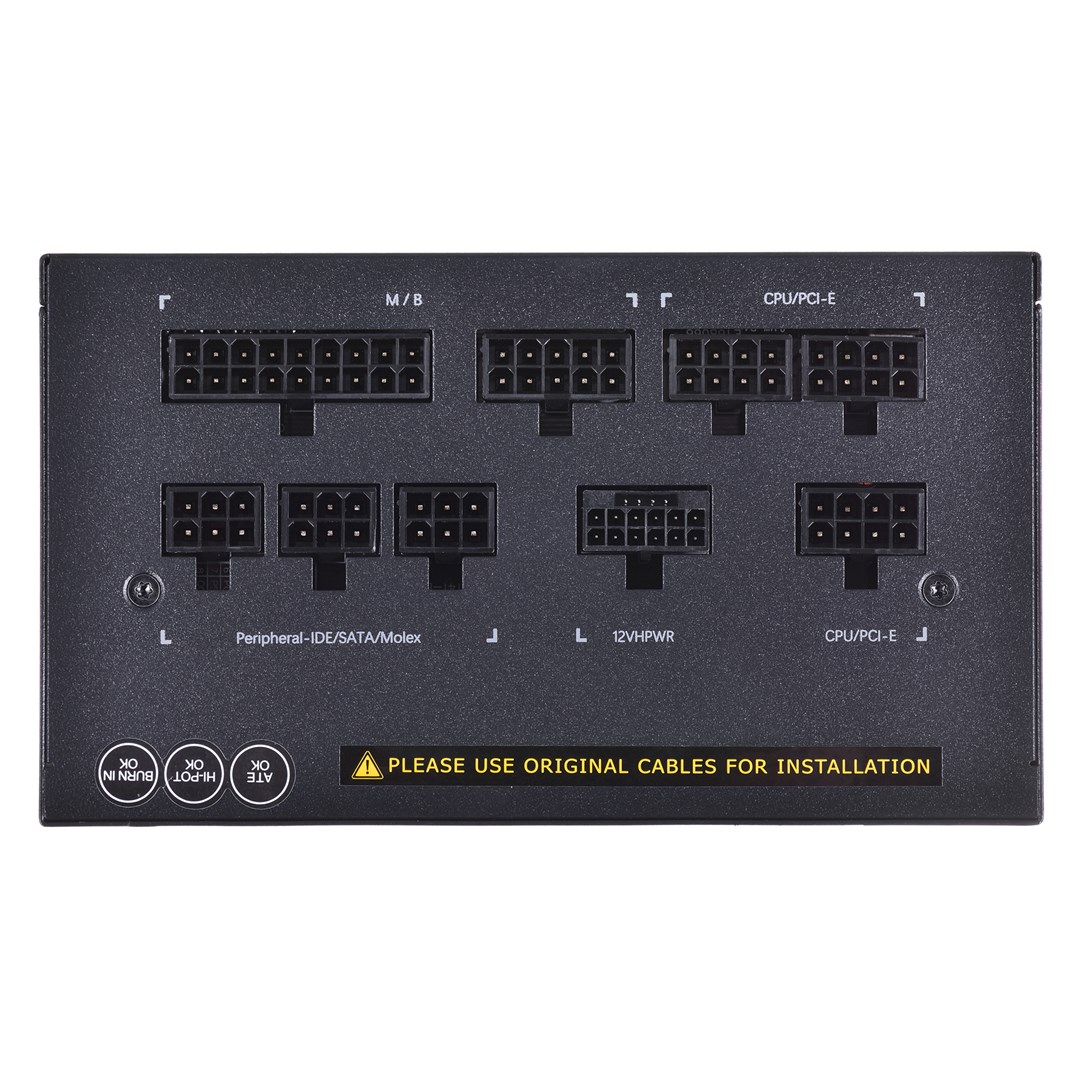

Name: Gigabyte UD1000GM PG5 power supply unit 1000 W 20+4 pin ATX ATX Black
Brand: Gigabyte
SKU: skroutz
Price: 141.49 EUR
Availability: InStock

Gigabyte UD1000GM PG5 power supply unit 1000 W 20+4 pin ATX ATX Black

-39 %

Gigabyte UD1000GM PG5 power supply unit 1000 W 20+4 pin ATX ATX Black

Specifications

Design
Cooling type	Active
Fan diameter	12 cm
Product colour	Black
Performance
80 PLUS certification	80 PLUS Gold
Bearing technology	HYB
Mean time between failures (MTBF)	100000 h
Power supply unit (PSU) form factor	ATX
Purpose	PC
Ports & interfaces
ATX power connector (20+4 pin)	Yes
Cabling type	Modular
CPU power cable length	80 cm
CPU power connector (4+4 pin)	Yes
Motherboard power cable length	61 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	8
PCI Express power cable length	70 cm
PCI Express power connectors (16-pin)	1
PCI Express power connectors (6+2 pin)	4
Peripheral (Molex) power cable length	150, 120, 500 mm
Peripheral (Molex) power connectors (4-pin)	4
SATA power cable length	150, 600 mm
Power
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Efficiency	90%
Hold time	16 ms
Input current	6.5 - 15 A
Power Factor Correction (PFC) type	Active
Power Good signal delay range	100 - 150 ms
Power protection features	Under voltage, Over current, Over power, Short circuit, Over voltage
Total power	1000 W
Weight & dimensions
Depth	86 mm
Height	140 mm
Width	150 mm
