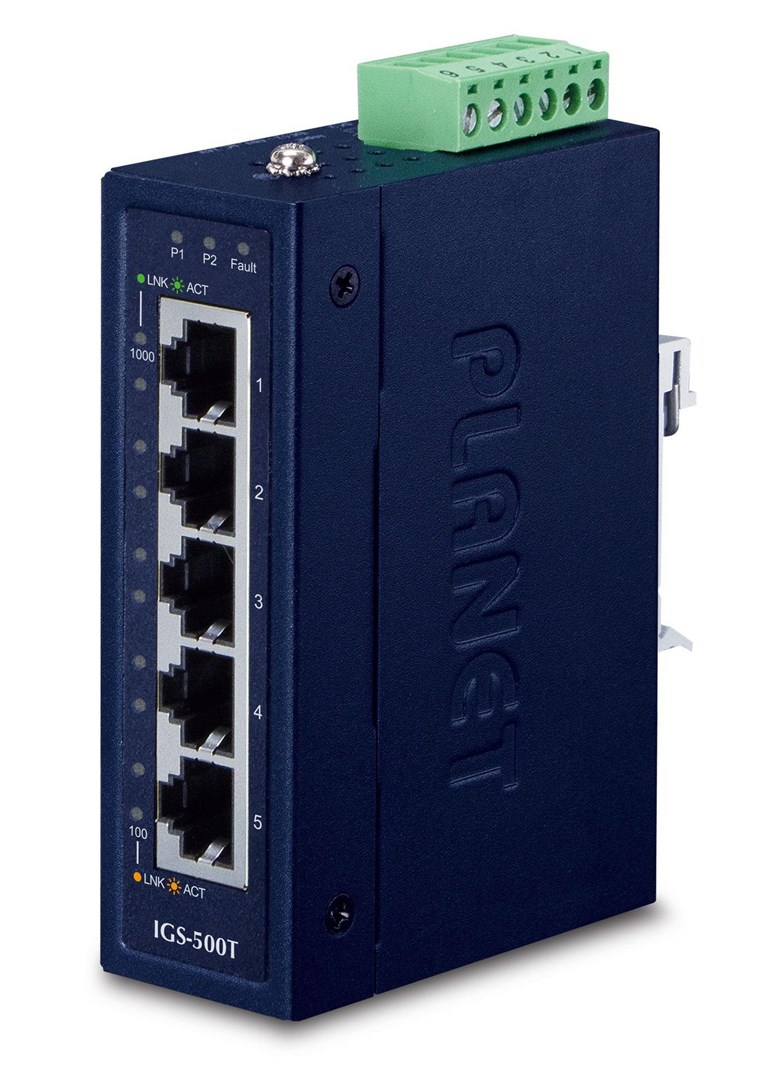

Name: PLANET IGS-500T network switch Unmanaged Gigabit Ethernet (10/100/1000) Blue
Brand: Planet
Price: 103.52 EUR
Availability: InStock

PLANET IGS-500T network switch Unmanaged Gigabit Ethernet (10/100/1000) Blue

-39 %

PLANET IGS-500T network switch Unmanaged Gigabit Ethernet (10/100/1000) Blue

Specifications

Design
DIN rail mounting	Yes
Housing material	Metal
International Protection (IP) code	IP30
LED indicators	Yes
Product colour	Blue
Wall mountable	Yes
Network
10G support	No
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Cable types supported	Cat3, Cat6, Cat4, Cat5, Cat5e
Flow control support	Yes
Full duplex	Yes
MAC address auto-aging supported	Yes
MAC address auto-learning supported	Yes
Networking standards	IEEE 802.3x, IEEE 802.3az, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3u
Operational conditions
Heat dissipation	12.35 BTU/h
Operating relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	-40 - 75 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 75 °C
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	5
Power
DC input voltage	24 V
Power consumption (typical)	3.6 W
Redundant power supply (RPS) support	Yes
Weight & dimensions
Depth	70 mm
Height	104 mm
Weight	252 g
Width	30 mm
