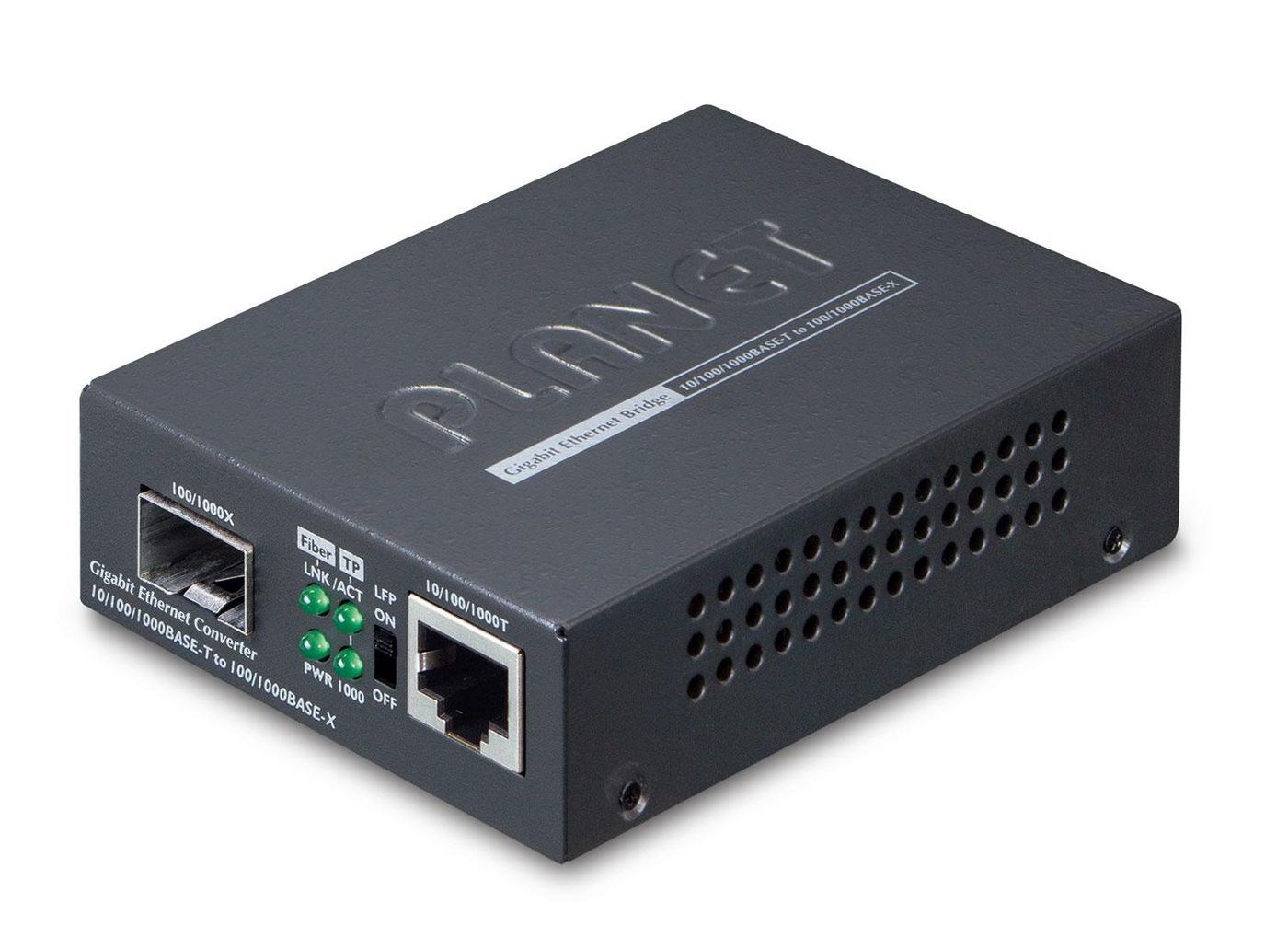

Name: PLANET GT805A network media converter 1000 Mbit/s Multi-mode Black
Brand: Planet
Price: 67.92 EUR
Availability: InStock

PLANET GT805A network media converter 1000 Mbit/s Multi-mode Black

-36 %

PLANET GT805A network media converter 1000 Mbit/s Multi-mode Black

Design
DIN rail mounting	Yes
Internal	No
LED indicators	Yes
Product colour	Black
Network
Auto MDI/MDI-X	Yes
Converter input interface	10Base-T, 1000Base-T, 100Base-T
Converter output interface	1000Base-SX, 1000Base-LX
Duplex system	Half, Full
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	100, 1000 Mbit/s, 10
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-10 - 70 °C
Performance
Fiber cable diameters supported (core/cladding)	50/125, 62.5/125 µm, 9/125 µm
Fiber mode structure	Multi-mode
Maximum transfer distance	100 m
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	2
Fiber optic connector	SFP
Power
Input current	2 A
Input voltage	5 V
Power consumption (typical)	5.6 W
Weight & dimensions
Depth	70 mm
Height	26 mm
Weight	200 g
Width	94 mm
