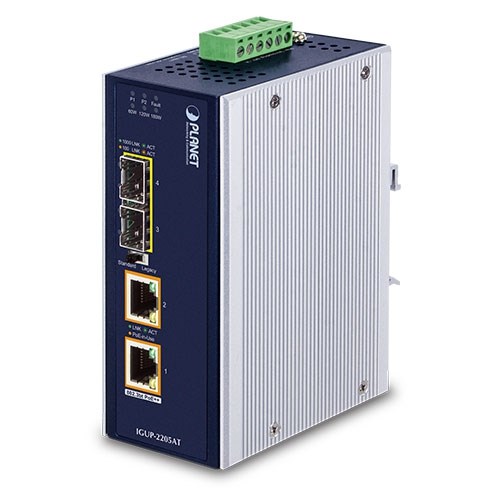

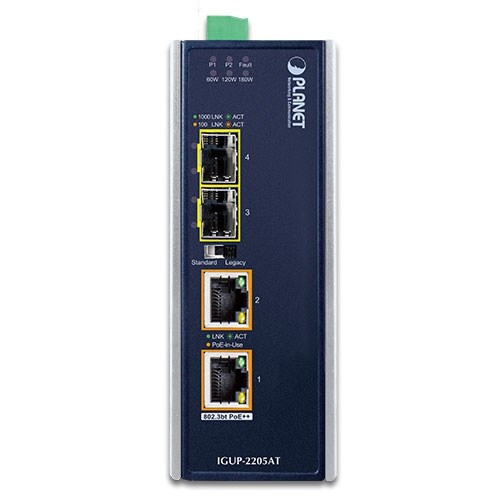

Name: PLANET IGUP-2205AT network media converter 1000 Mbit/s Multi-mode, Single-mode Blue
Brand: Planet
Price: 313.22 EUR
Availability: InStock

PLANET IGUP-2205AT network media converter 1000 Mbit/s Multi-mode, Single-mode Blue

-40 %

PLANET IGUP-2205AT network media converter 1000 Mbit/s Multi-mode, Single-mode Blue

Specifications

Features
DIN rail mounting	Yes
Housing material	Metal
International Protection (IP) code	IP30
LED indicators	Fault, System, Power, PoE
Product colour	Blue
Network
Cable types supported	Cat5, Cat5e, Cat3, Cat6, Cat4
Converter input interface	100Base-T, 1000Base-T, 10Base-T
Converter output interface	1000Base-LX, 1000Base-SX, 1000Base-BX
Duplex system	Half, Full
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	100, 1000 Mbit/s, 10
Flow control support	Yes
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3z, IEEE 802.3x, IEEE 802.3at, IEEE 802.3af, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3ad, IEEE 802.3u
Operational conditions
Operating relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	-40 - 75 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 85 °C
Performance
Fiber cable diameters supported (core/cladding)	62.5/125 µm, 9/125 µm, 50/125
Fiber mode structure	Single-mode, Multi-mode
Ports & interfaces
Connectivity technology	Wired
Fiber ports quantity	2
Power over Ethernet (PoE) ports quantity	2
Power
Input voltage	12 - 48 V
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	90 W
Weight & dimensions
Depth	85 mm
Height	135 mm
Weight	665 g
Width	55 mm
