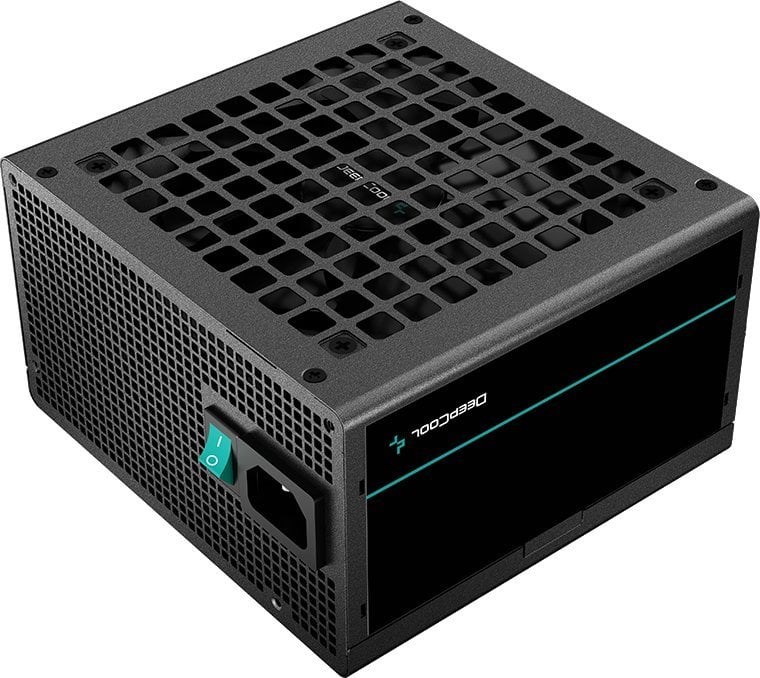

Name: DeepCool PF500 power supply unit 500 W 20+4 pin ATX ATX Black
Brand: DEEPCOOL
SKU: skroutz
Price: 45.76 EUR
Availability: InStock

DeepCool PF500 power supply unit 500 W 20+4 pin ATX ATX Black

-33 %

DeepCool PF500 power supply unit 500 W 20+4 pin ATX ATX Black

Specifications

Design
Cooling type	Active
Fan diameter	12 cm
Number of fans	1 fan(s)
On/off switch	Yes
Product colour	Black
Performance
80 PLUS certification	80 PLUS
ATX version	2.4
Mean time between failures (MTBF)	100000 h
Power supply unit (PSU) form factor	ATX
Purpose	PC/Server
Ports & interfaces
Motherboard power cable length	55 cm
Motherboard power connector	20+4 pin ATX
PCI Express power connectors (6+2 pin)	2
SATA power cable length	900 mm, 600 mm, 750, 450
Power
AC input frequency	50 Hz
AC input voltage	220 - 240 V
Combined power (+12V)	480 W
Combined power (+3.3V)	100 W
Combined power (+5V)	100 W
Combined power (+5Vsb)	12.5 W
Combined power (-12V)	3.6 W
Efficiency	85%
Hold time	16 ms
Max output current (+12V)	40 A
Max output current (+3.3V)	15 A
Max output current (+5V)	15 A
Max output current (+5Vsb)	2.5 A
Max output current (-12V)	0.3 A
Power protection features	Short circuit, Over voltage, Under voltage, Over power
Total power	500 W
Weight & dimensions
Depth	140 mm
Height	86 mm
Width	150 mm
