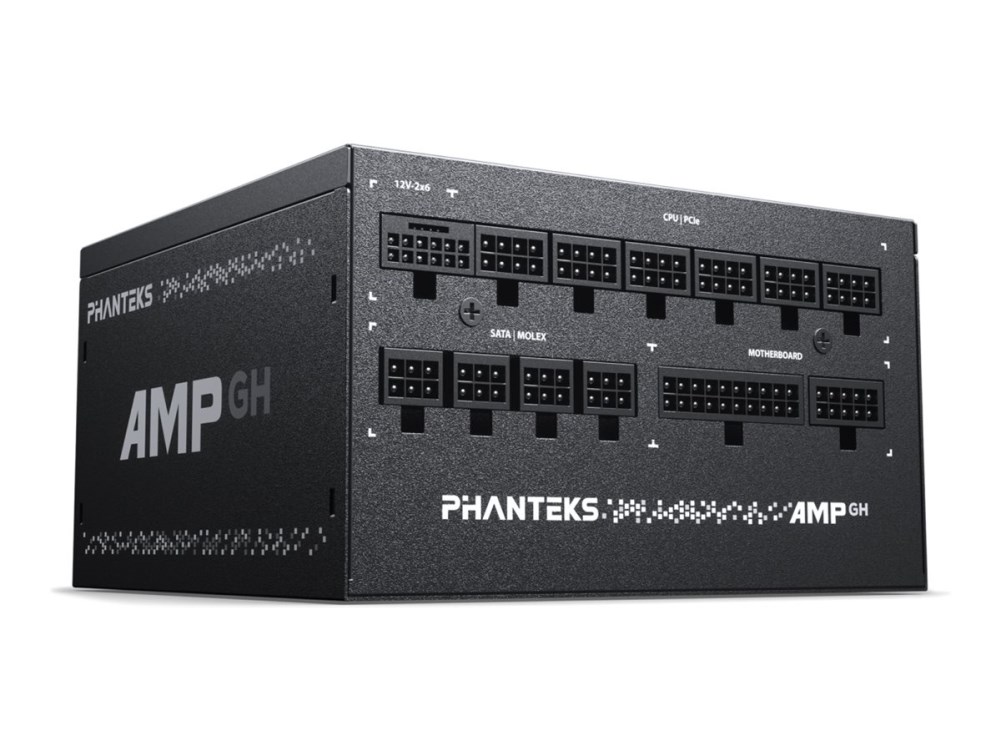

Name: Phanteks AMP GH power supply unit 1000 W 18+10 pin ATX ATX Black
Brand: Phanteks
Price: 188.66 EUR
Availability: InStock

Phanteks AMP GH power supply unit 1000 W 18+10 pin ATX ATX Black

-39 %

Phanteks AMP GH power supply unit 1000 W 18+10 pin ATX ATX Black

Design
Cooling type	Active
Fan diameter	12 cm
Number of fans	1 fan(s)
On/off switch	Yes
Product colour	Black
Performance
80 PLUS certification	80 PLUS Platinum
Mean time between failures (MTBF)	100000 h
Power supply unit (PSU) form factor	ATX
Purpose	PC
Power
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Combined power (+12V)	996 W
Combined power (+3.3V)	120 W
Combined power (+5V)	120 W
Combined power (+5Vsb)	15 W
Combined power (-12V)	3.6 W
Input current	12 - 6 A
Max output current (+12V)	83 A
Max output current (+3.3V)	20 A
Max output current (+5V)	20 A
Max output current (+5Vsb)	3 A
Max output current (-12V)	0.3 A
Maximum input current (@110V)	12 A
Maximum input current (@220V)	6 A
Power protection features	Over current, Over power, Short circuit, Overcharge, Overheating
Total power	1000 W
Weight & dimensions
Depth	150 mm
Height	86 mm
Weight	1.4 kg
Width	140 mm
