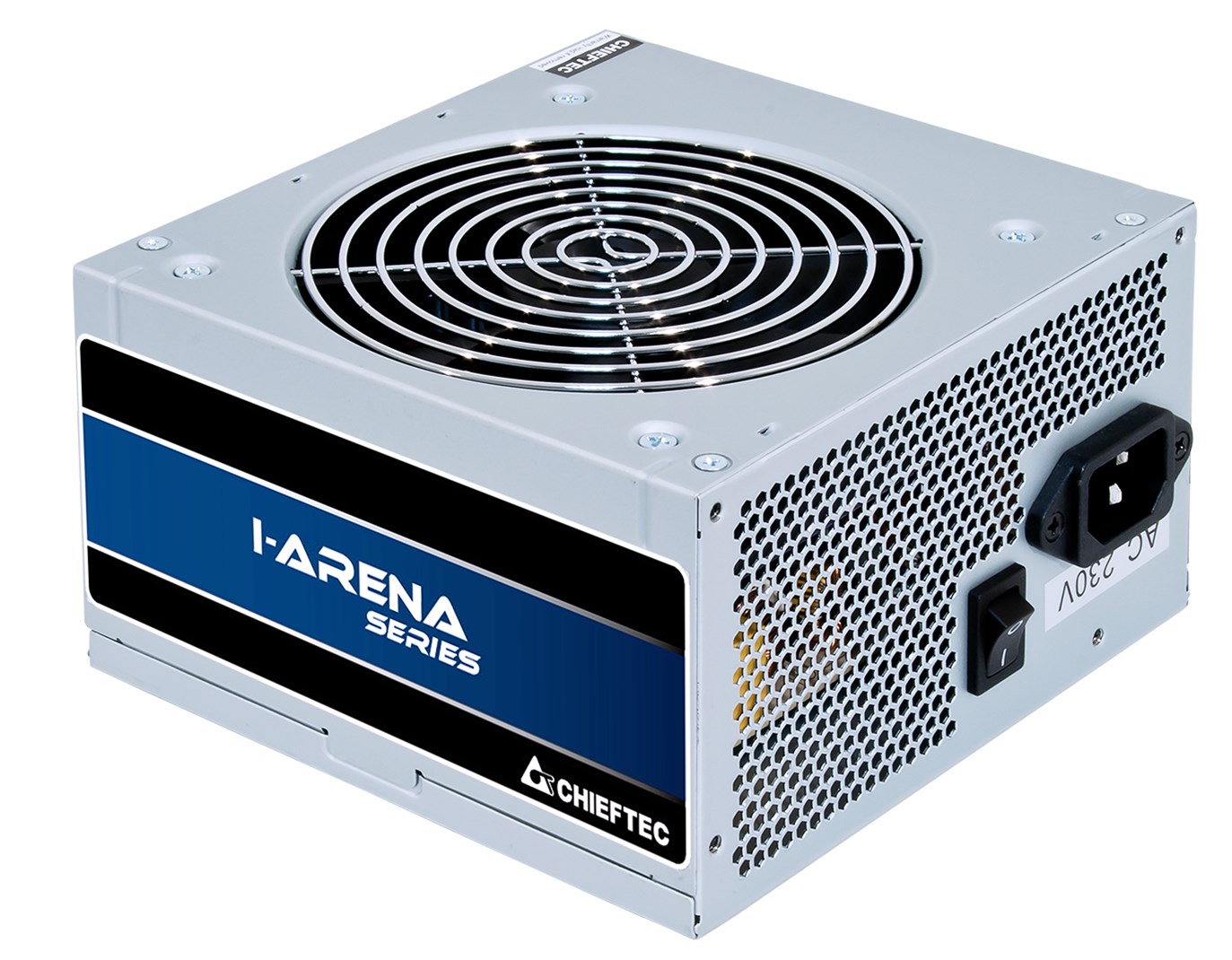

Name: Chieftec GPB-400S power supply unit 400 W 20+4 pin ATX PS/2 Silver
Brand: Chieftec
SKU: skroutz
Price: 43.10 EUR
Availability: InStock

Chieftec GPB-400S power supply unit 400 W 20+4 pin ATX PS/2 Silver

-33 %

Chieftec GPB-400S power supply unit 400 W 20+4 pin ATX PS/2 Silver

Specifications

Design
Fan diameter	12 cm
Number of fans	1 fan(s)
On/off switch	Yes
Product colour	Silver
Performance
ATX version	2.3
Power supply unit (PSU) form factor	PS/2
Purpose	PC
Ports & interfaces
ATX power connector (20+4 pin)	Yes
Motherboard power connector	20+4 pin ATX
PCI Express power connectors (6+2 pin)	1
Peripheral (Molex) power connectors (4-pin)	3
Power
AC input frequency	47 - 63 Hz
AC input voltage	200 - 240 V
Combined power (+3.3V)	100 W
Combined power (+5V)	100 W
Combined power (+5Vsb)	12.5 W
Combined power (-12V)	3.6 W
Efficiency	85%
Input current	3 A
Max output current (+12V1)	30 A
Max output current (+3.3V)	17 A
Max output current (+5V)	16 A
Max output current (+5Vsb)	2.5 A
Max output current (-12V)	0.3 A
Power factor	0.9
Power Factor Correction (PFC) type	Active
Power protection features	Under voltage, Overload, Short circuit, Over voltage
Total power	400 W
Weight & dimensions
Depth	140 mm
Height	87 mm
Width	150 mm
