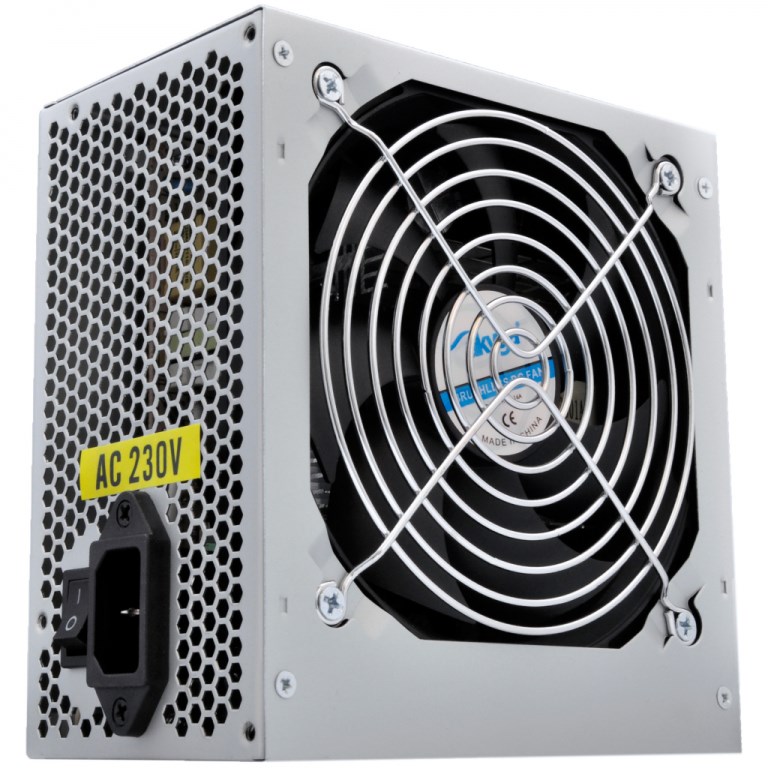

Name: Akyga AK-B1-420 power supply unit 420 W 20+4 pin ATX ATX Grey
Brand: Akyga
SKU: Skroutz
Price: 24.92 EUR
Availability: InStock

Akyga AK-B1-420 power supply unit 420 W 20+4 pin ATX ATX Grey

-33 %

Akyga AK-B1-420 power supply unit 420 W 20+4 pin ATX ATX Grey

Specifications

Packaging data
Package depth	196 mm
Package height	86 mm
Package type	Box
Package weight	1.05 kg
Package width	151 mm
Performance
ATX version	2.31
Mean time between failures (MTBF)	100000 h
Power supply unit (PSU) form factor	ATX
Purpose	PC
Ports & interfaces
CPU P4 connector (4-pin)	1
Number of SATA power connectors	3
Peripheral (Molex) power connectors (4-pin)	2
Power
AC input frequency	50 Hz
AC input voltage	230 V
Combined power (+12V)	228 W
Combined power (+3.3V)	210 W
Combined power (+5V)	210 W
Combined power (+5Vsb)	18.5 W
Combined power (-12V)	18.5 W
Efficiency	70%
Input current	5 A
Max output current (+12V)	19 A
Max output current (+3.3V)	24 A
Max output current (+5V)	28 A
Max output current (+5Vsb)	2.5 A
Max output current (-12V)	0.5 A
Power protection features	Over power, Short circuit, Over voltage, Under voltage, Over current
Total power	420 W
Weight & dimensions
Depth	140 mm
Height	85 mm
Weight	1.04 kg
Width	150 mm
