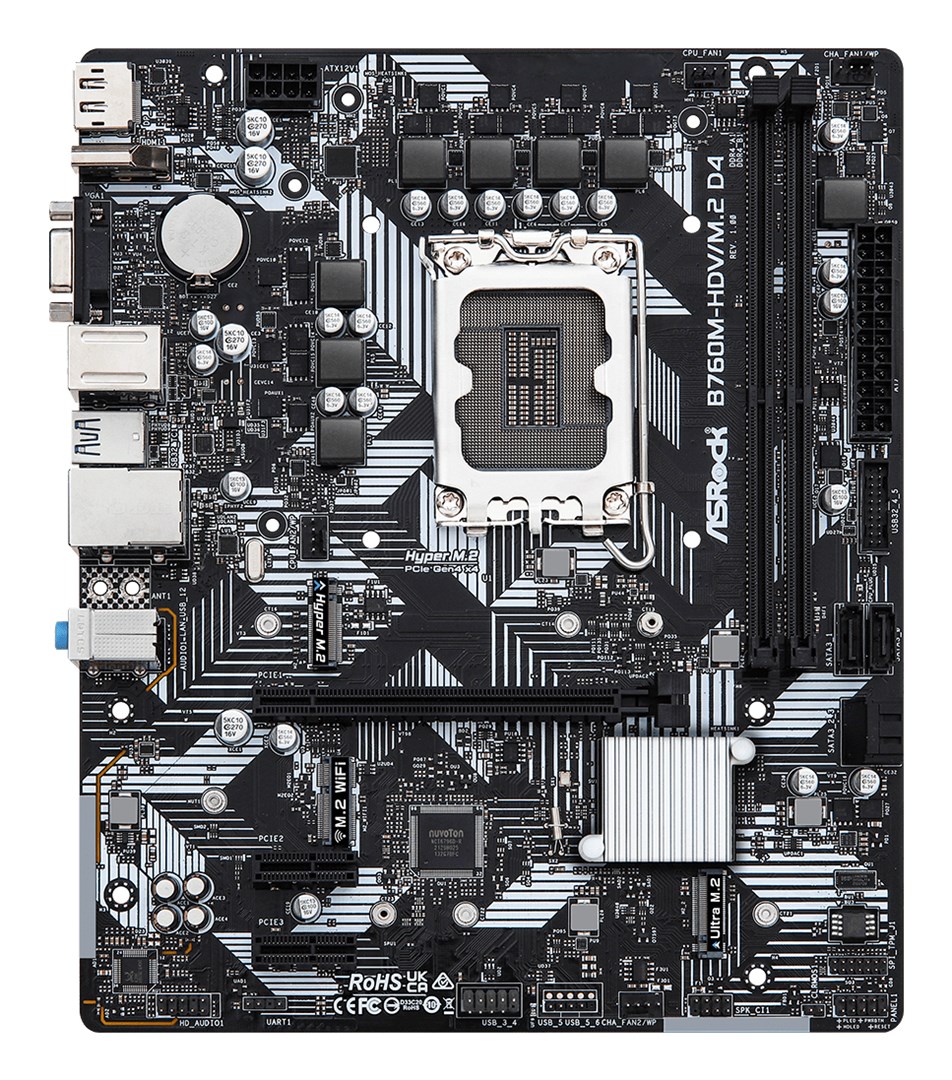

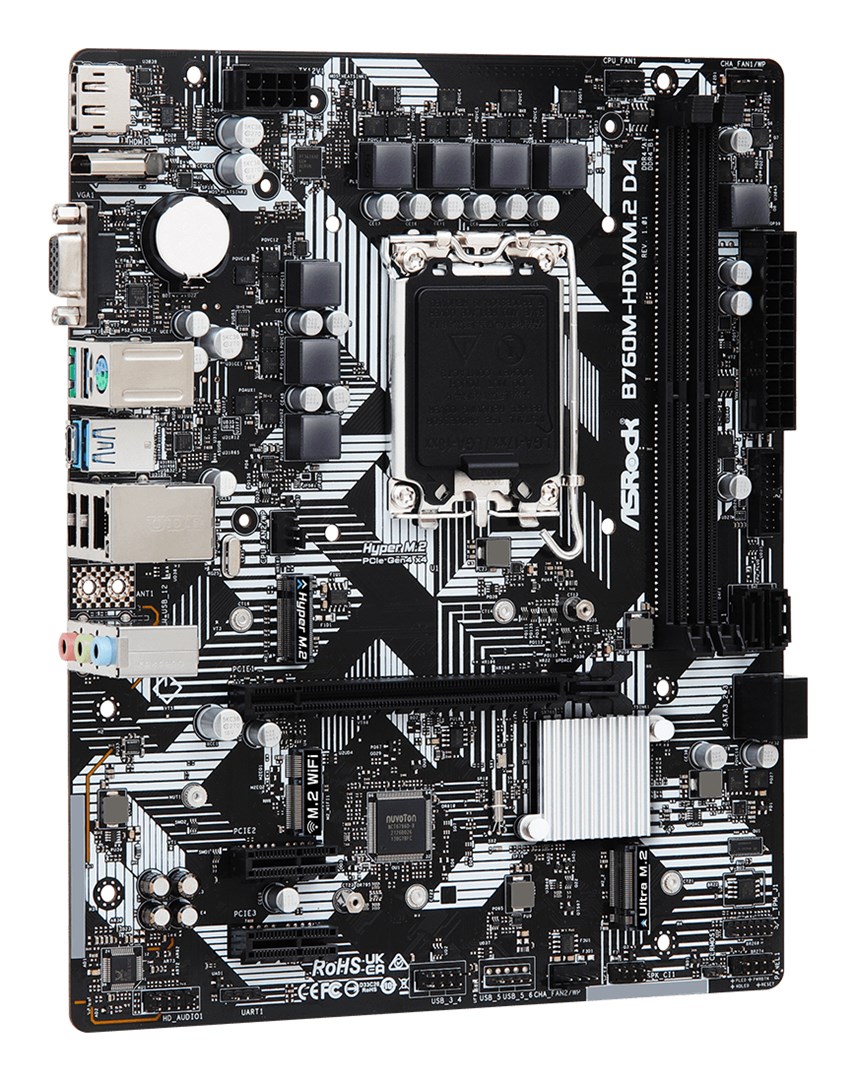

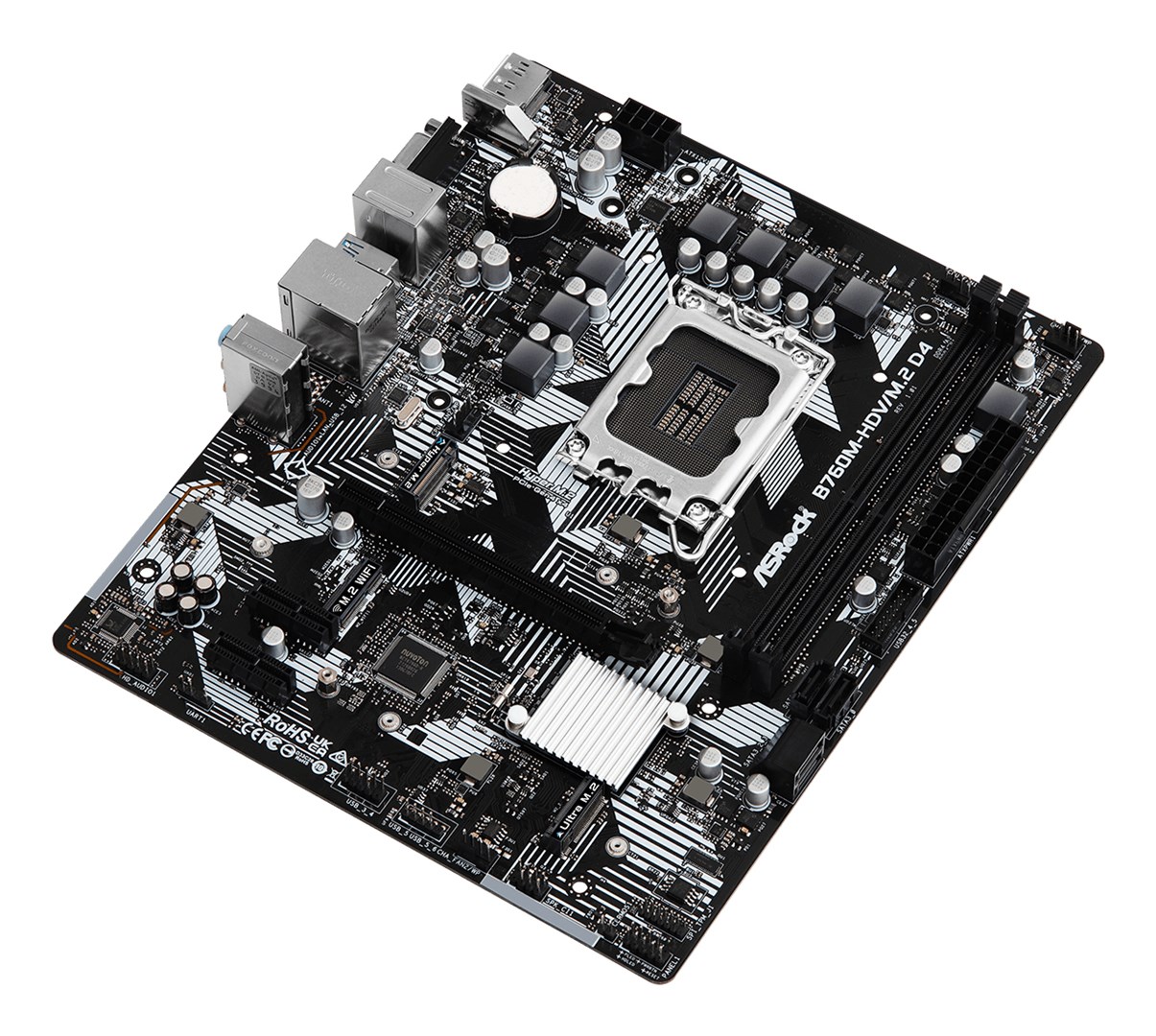

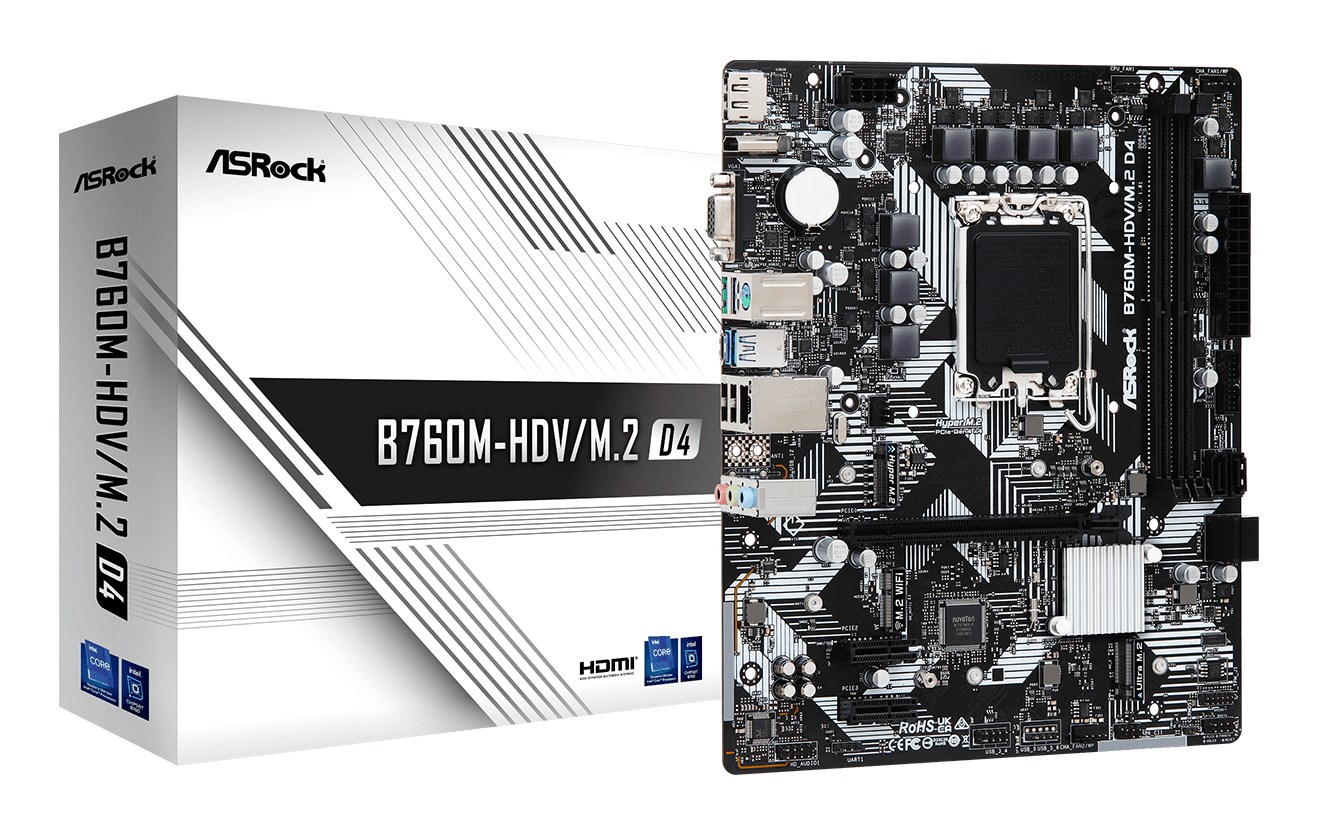

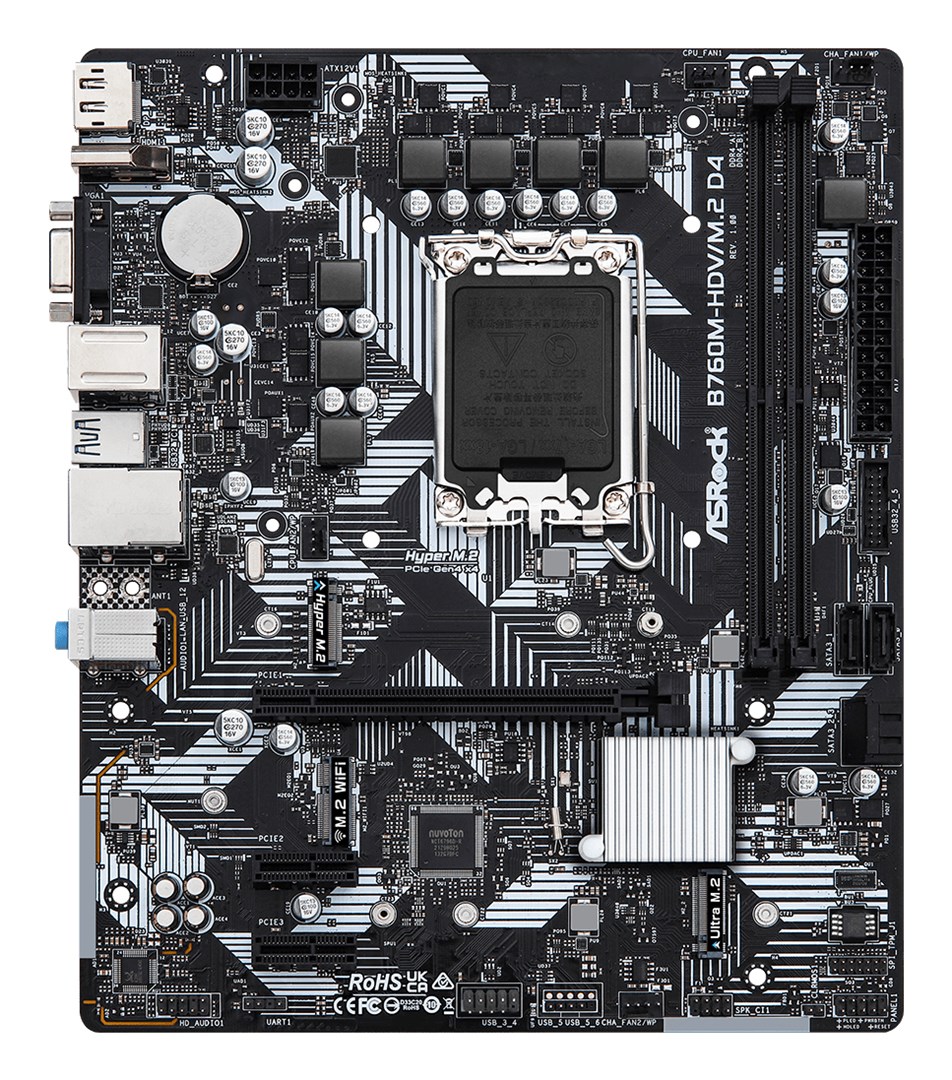

Name: Asrock B760M-HDV/M.2 D4 Intel B760 LGA 1700 micro ATX
Brand: ASRock
SKU: Skroutz
Price: 93.26 EUR
Availability: InStock

Asrock B760M-HDV/M.2 D4 Intel B760 LGA 1700 micro ATX

-37 %

Asrock B760M-HDV/M.2 D4 Intel B760 LGA 1700 micro ATX

Features
Audio chip	Realtek ALC897
Audio output channels	7.1 channels
Motherboard chipset	Intel B760
Motherboard chipset family	Intel
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 Education x64, Windows 11 x64
Graphics
HDCP	Yes
Parallel processing technology support	Not supported
Internal I/O
ATX Power connector (24-pin)	Yes
Chassis intrusion connector	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Front panel connector	Yes
Number of SATA III connectors	4
TPM connector	Yes
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Network
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
LAN controller	Realtek RTL8111H
Wi-Fi	No
Weight & dimensions
Depth	201 mm
Width	244 mm
Memory
ECC сompatibility	Non-ECC
Maximum internal memory	64 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory clock speeds	5333 MHz, 3200, 4400
Supported memory types	DDR4-SDRAM
Unbuffered memory	Yes
Processor
Compatible processor series	Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i3, Intel® Core™ i5
Maximum number of SMP processors	1
Processor manufacturer	Intel
Processor socket	LGA 1700
