Name: Asrock B760 Pro RS/D4 Intel B760 LGA 1700 ATX
Brand: ASRock
Price: 142.10 EUR
Availability: InStock

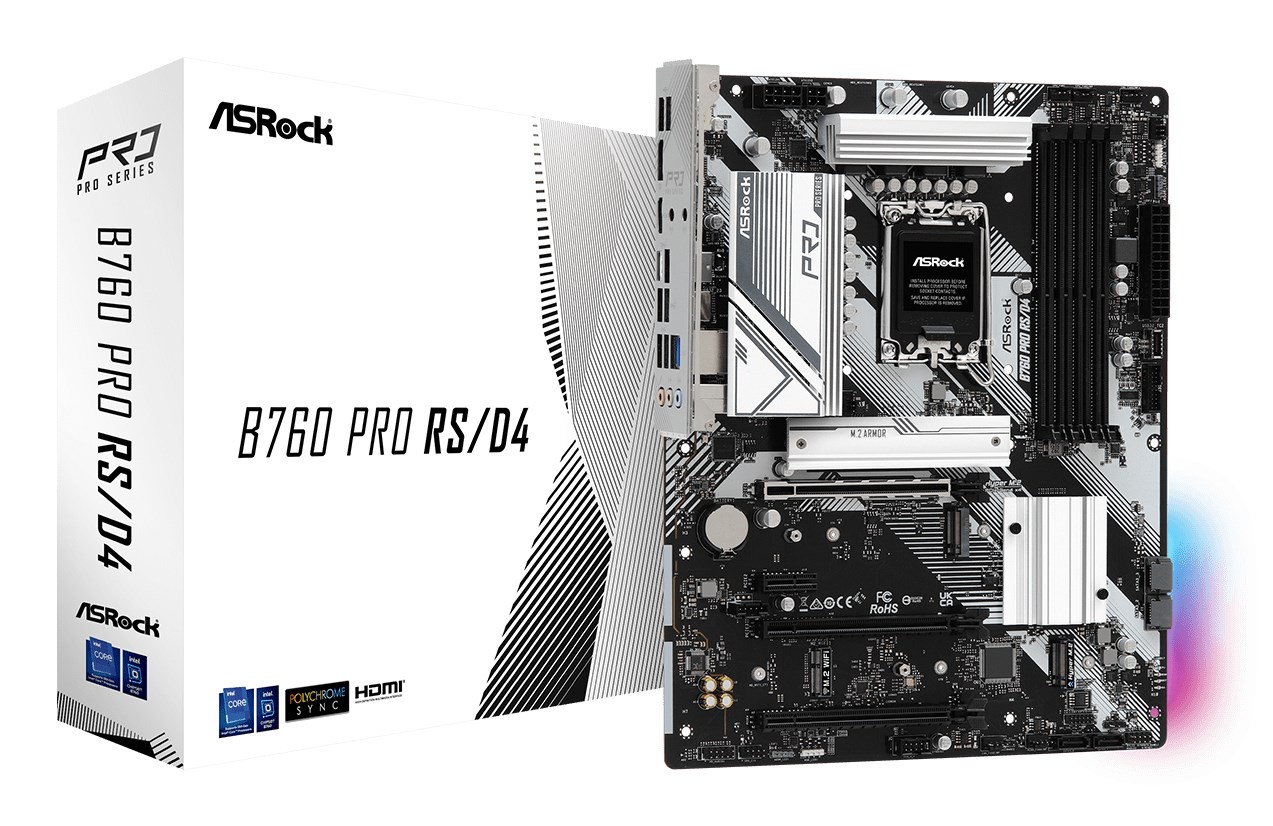

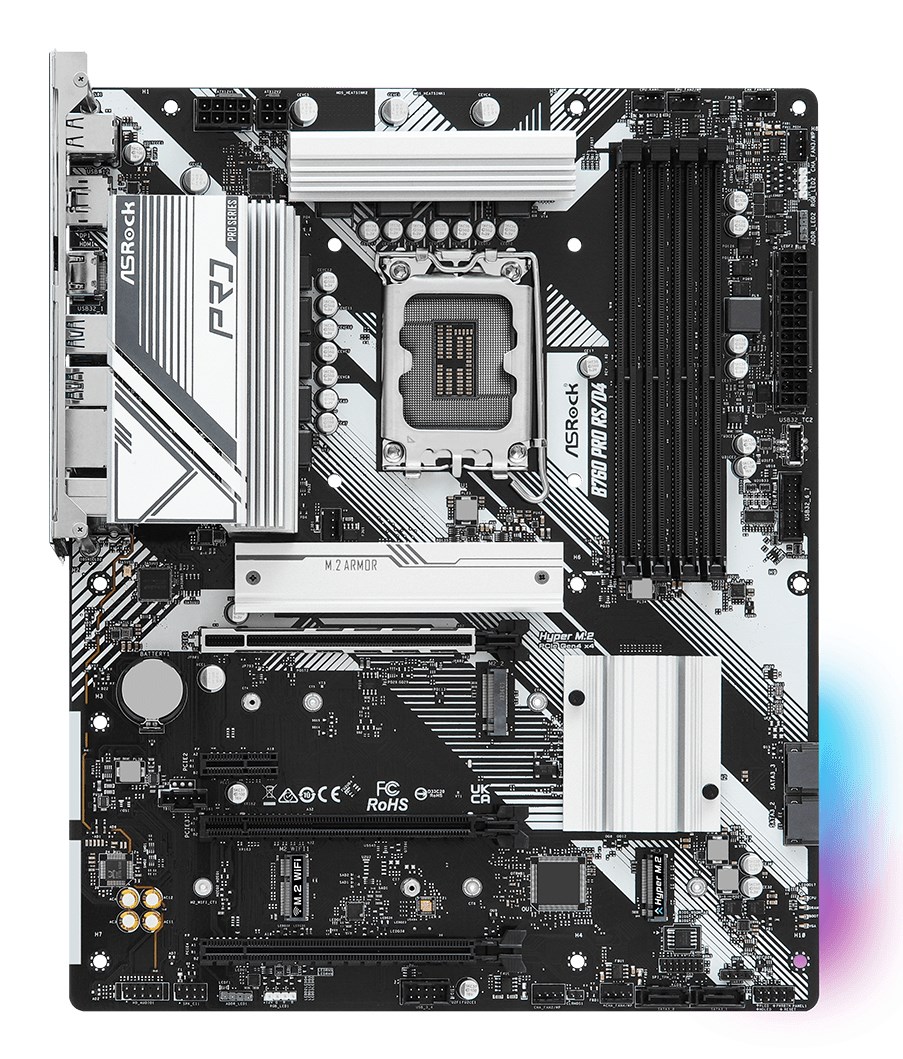

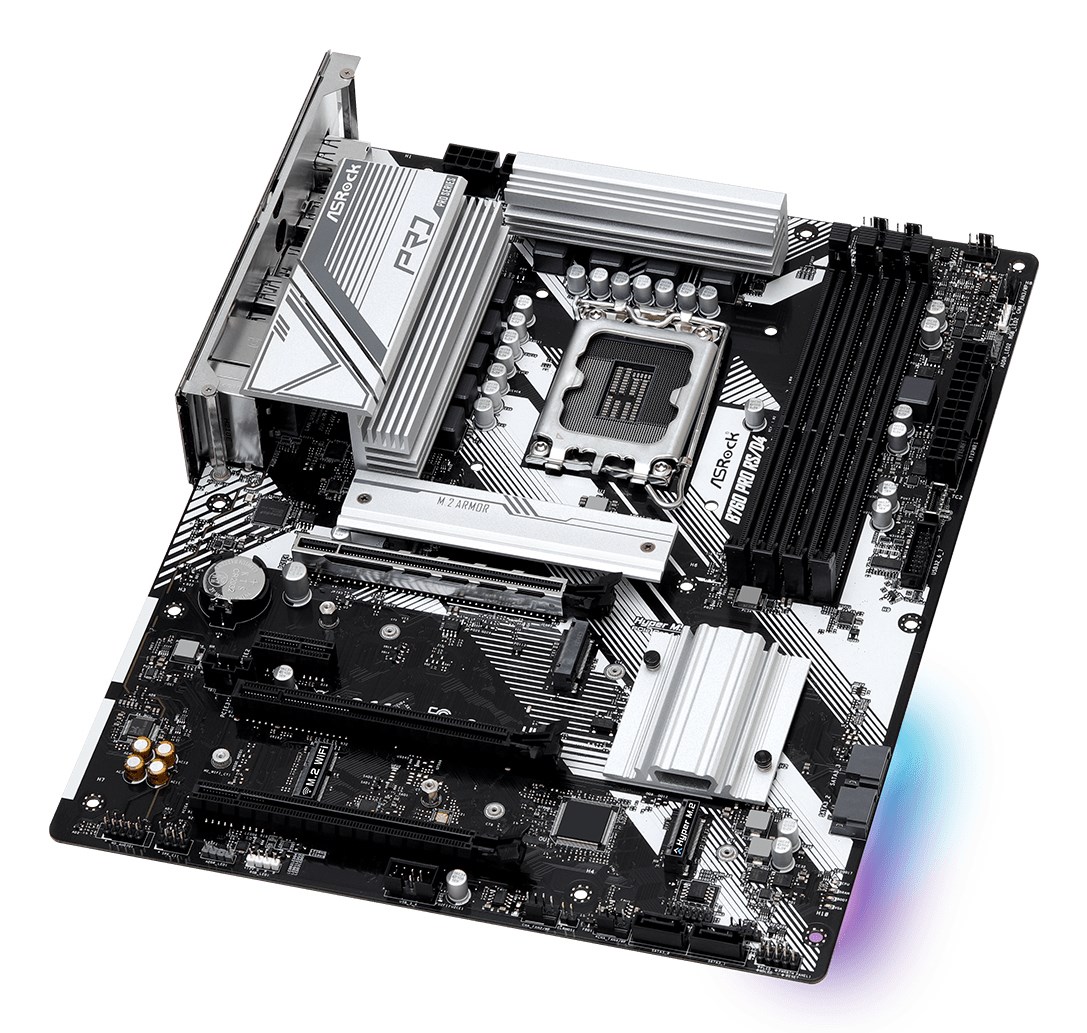

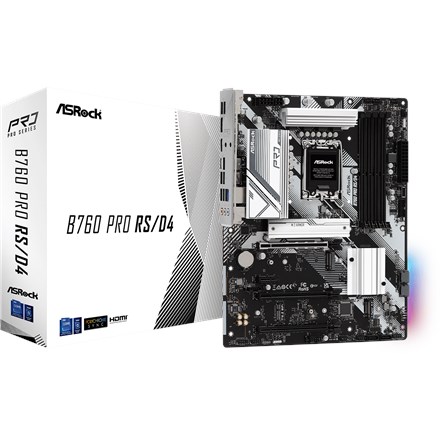

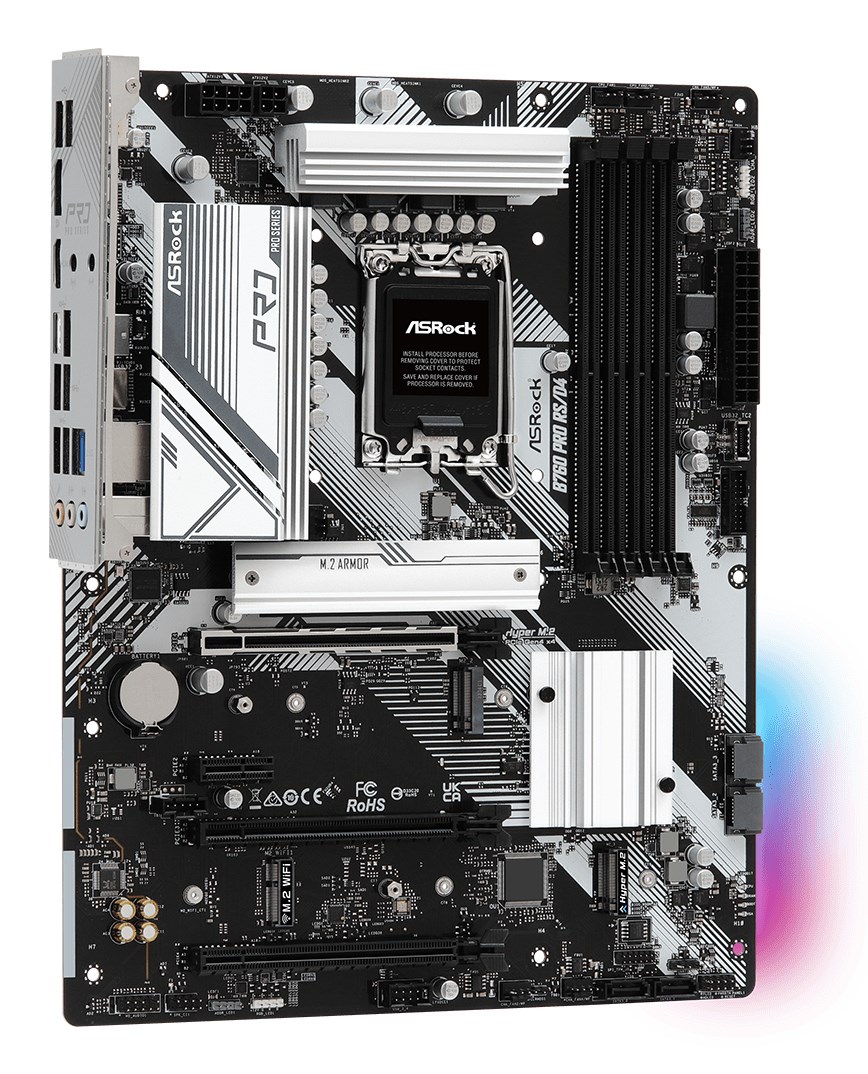

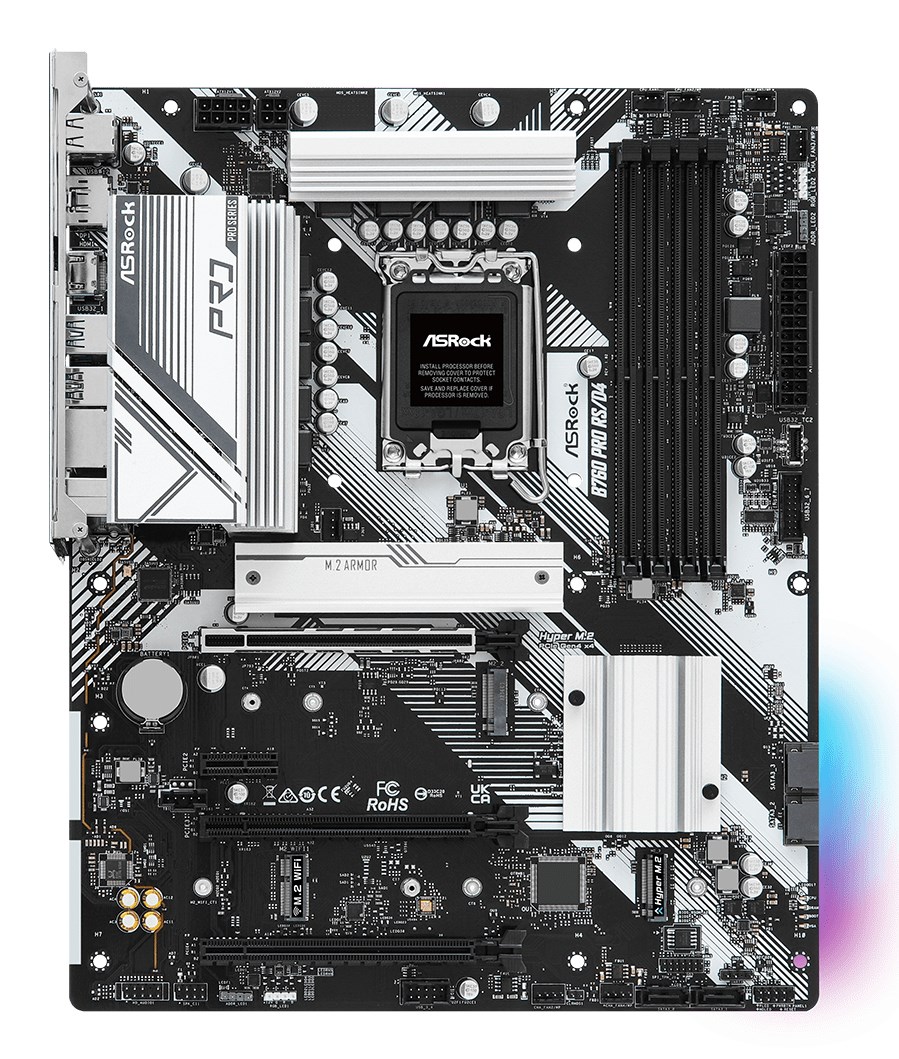

Asrock B760 Pro RS/D4 Intel B760 LGA 1700 ATX

-39 %

Asrock B760 Pro RS/D4 Intel B760 LGA 1700 ATX

Features
Audio chip	Realtek ALC897
Audio output channels	7.1 channels
Component for	PC
Motherboard chipset	Intel B760
Motherboard chipset family	Intel
Motherboard form factor	ATX
Graphics
HDCP	Yes
Parallel processing technology support	Not supported

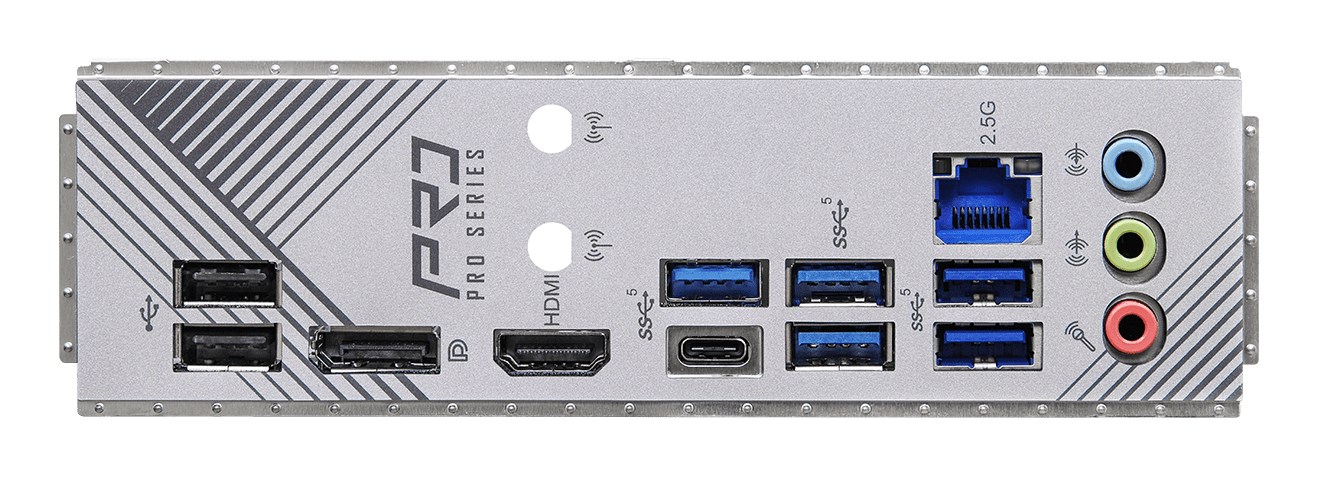

Internal I/O
ATX Power connector (24-pin)	Yes
Chassis intrusion connector	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Front panel audio connector	Yes
Front panel connector	Yes
Number of SATA III connectors	4
RGB LED pin header	Yes
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Network
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
LAN controller	Realtek RTL8125-BG
Wi-Fi	No
Weight & dimensions
Depth	244 mm
Width	305 mm
Memory
ECC сompatibility	Non-ECC
Maximum internal memory	128 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory clock speeds	5333 MHz, 3200 MHz, 4266, 4000, 4400 MHz
Supported memory types	DDR4-SDRAM
Processor
Compatible processor series	Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i3, Intel® Core™ i5
Maximum number of SMP processors	1
Processor manufacturer	Intel
Processor socket	LGA 1700
