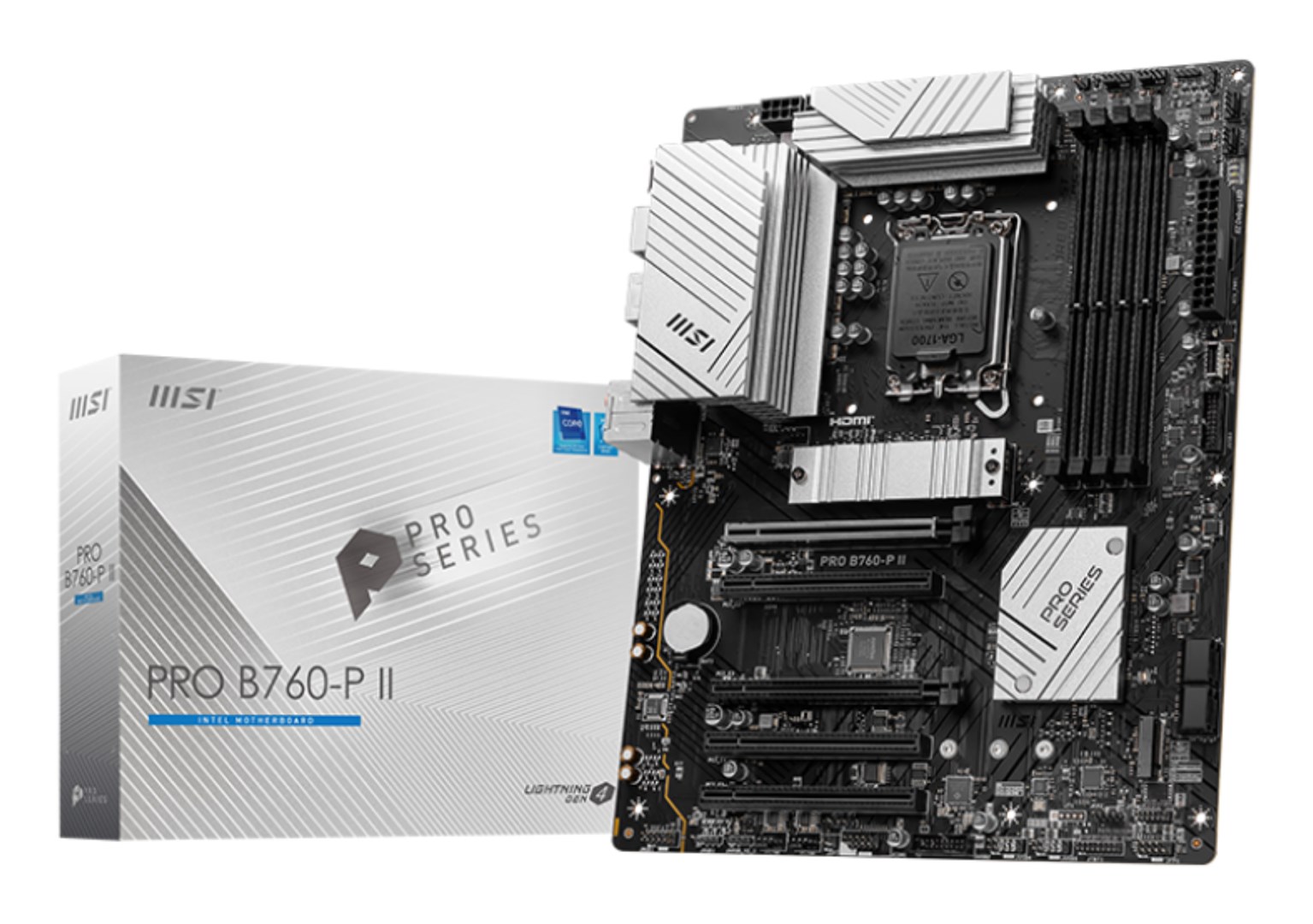

Name: MSI PRO B760-P II motherboard Intel B760 LGA 1700 ATX
Brand: MSI
SKU: Skroutz
Price: 154.26 EUR
Availability: InStock

MSI PRO B760-P II motherboard Intel B760 LGA 1700 ATX

-40 %

MSI PRO B760-P II motherboard Intel B760 LGA 1700 ATX

Features
Audio chip	Realtek ALC897
Audio output channels	7.1 channels
Motherboard chipset	Intel B760
Motherboard chipset family	Intel
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Internal I/O
12V power connector	Yes
ATX Power connector (24-pin)	Yes
Chassis intrusion connector	Yes
CPU fan connector	Yes
Front panel audio connector	Yes
Front panel connector	Yes
Number of SATA III connectors	4
Power fan connector	Yes
S/PDIF out connector	Yes
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Network
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
LAN controller	Realtek RTL8125-BG
Wi-Fi	No
Weight & dimensions
Depth	304.8 mm
Width	243.8 mm
Memory
ECC сompatibility	Non-ECC
Maximum internal memory	256 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory clock speed (max)	7000 MHz
Supported memory clock speeds	6400, 5800, 5400, 6200, 6800, 5000, 5200, 4800, 7000, 5600, 6000, 6600
Supported memory types	DDR5-SDRAM
Unbuffered memory	Yes
Processor
Compatible processor series	Intel® Core™ i3, Intel® Core™ i7, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®
Maximum internal memory supported by processor	256 GB
Processor manufacturer	Intel
Processor socket	LGA 1700
