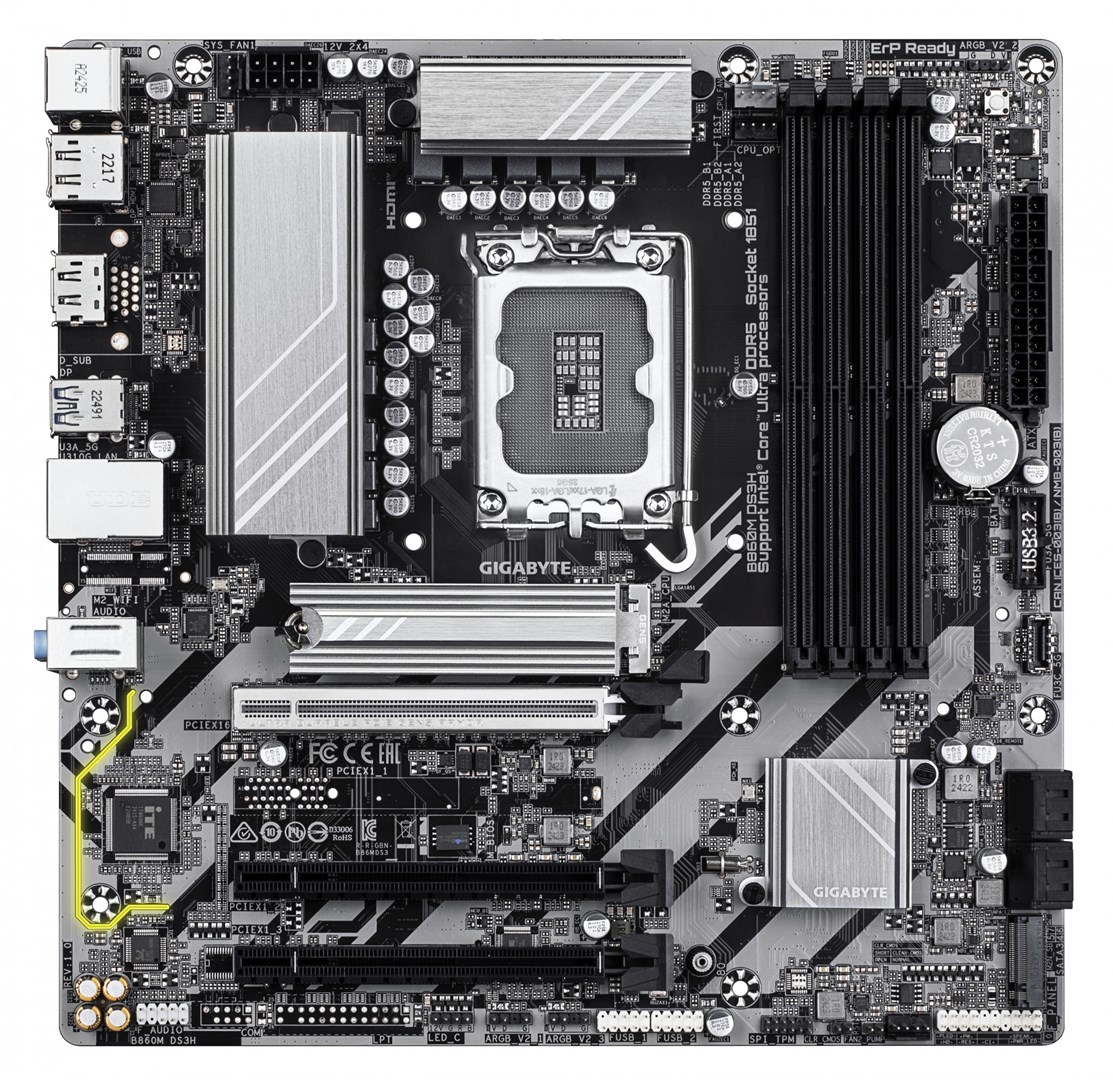

Name: GIGABYTE B860M DS3H Motherboard - Intel Core Ultra Series CPUs, 5+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2
Brand: Gigabyte
Price: 167.39 EUR
Availability: InStock

GIGABYTE B860M DS3H Motherboard - Intel Core Ultra Series CPUs, 5+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2

-39 %

GIGABYTE B860M DS3H Motherboard - Intel Core Ultra Series CPUs, 5+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2

Specifications

Features
Audio chip	Realtek ALC897
Audio output channels	7.1 channels
Component for	PC
Cooling type	Passive
Motherboard chipset	Intel B860
Motherboard chipset family	Intel
Motherboard form factor	micro ATX
PC health monitoring	Water cooling, Fan, Temperature, Voltage
Power source type	ATX
Product colour	Dark brown
Windows operating systems supported	Windows 11 x64, Windows 10 x64
Graphics
DirectX version	12.0
HDCP	Yes
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	Not supported
Weight & dimensions
Depth	244 mm
Height	35 mm
Width	244 mm
Memory
ECC сompatibility	ECC & Non-ECC
Maximum internal memory	256 GB
Maximum internal memory per slot	64 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory clock speed (max)	9066 MHz
Supported memory clock speeds	9066, 6400, 5600
Supported memory types	DDR5-SDRAM
Unbuffered memory	Yes
Processor
Compatible processor series	Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Supported processor sockets	LGA 1851
