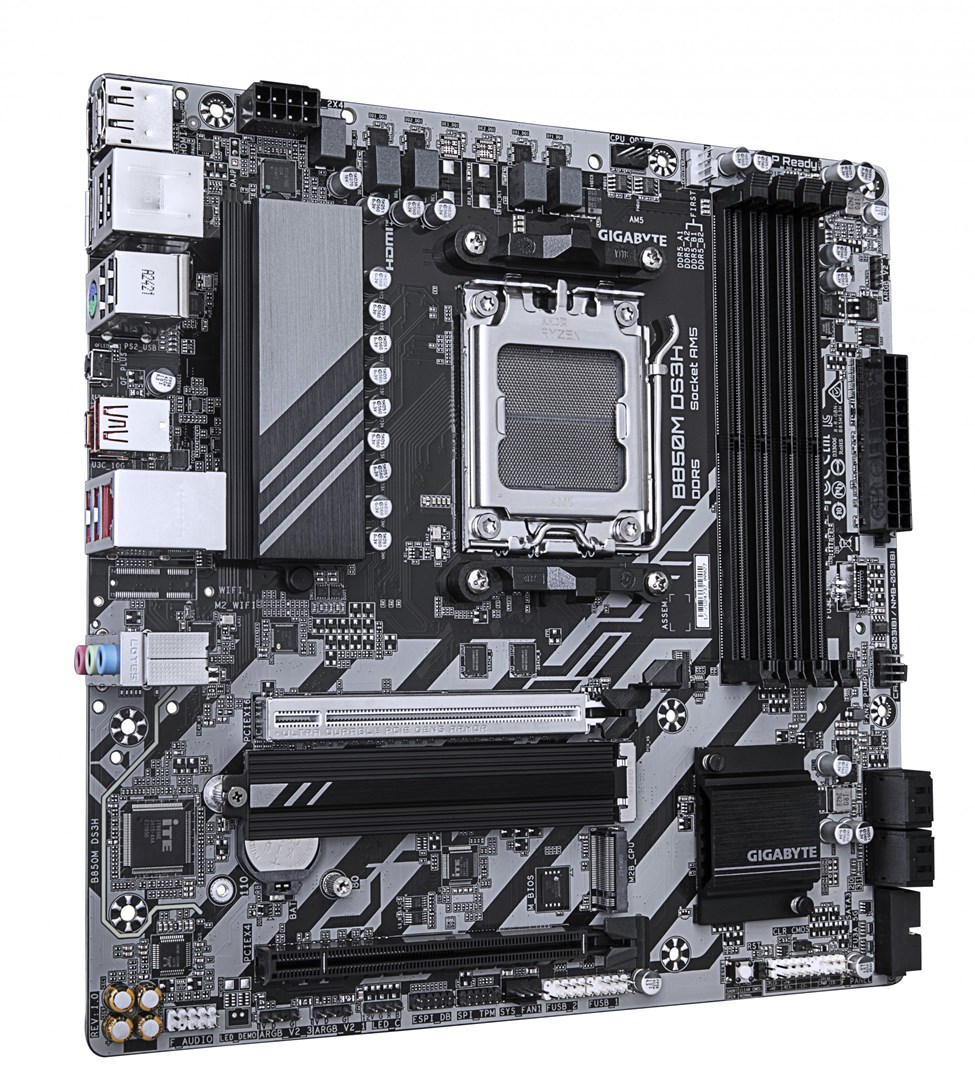

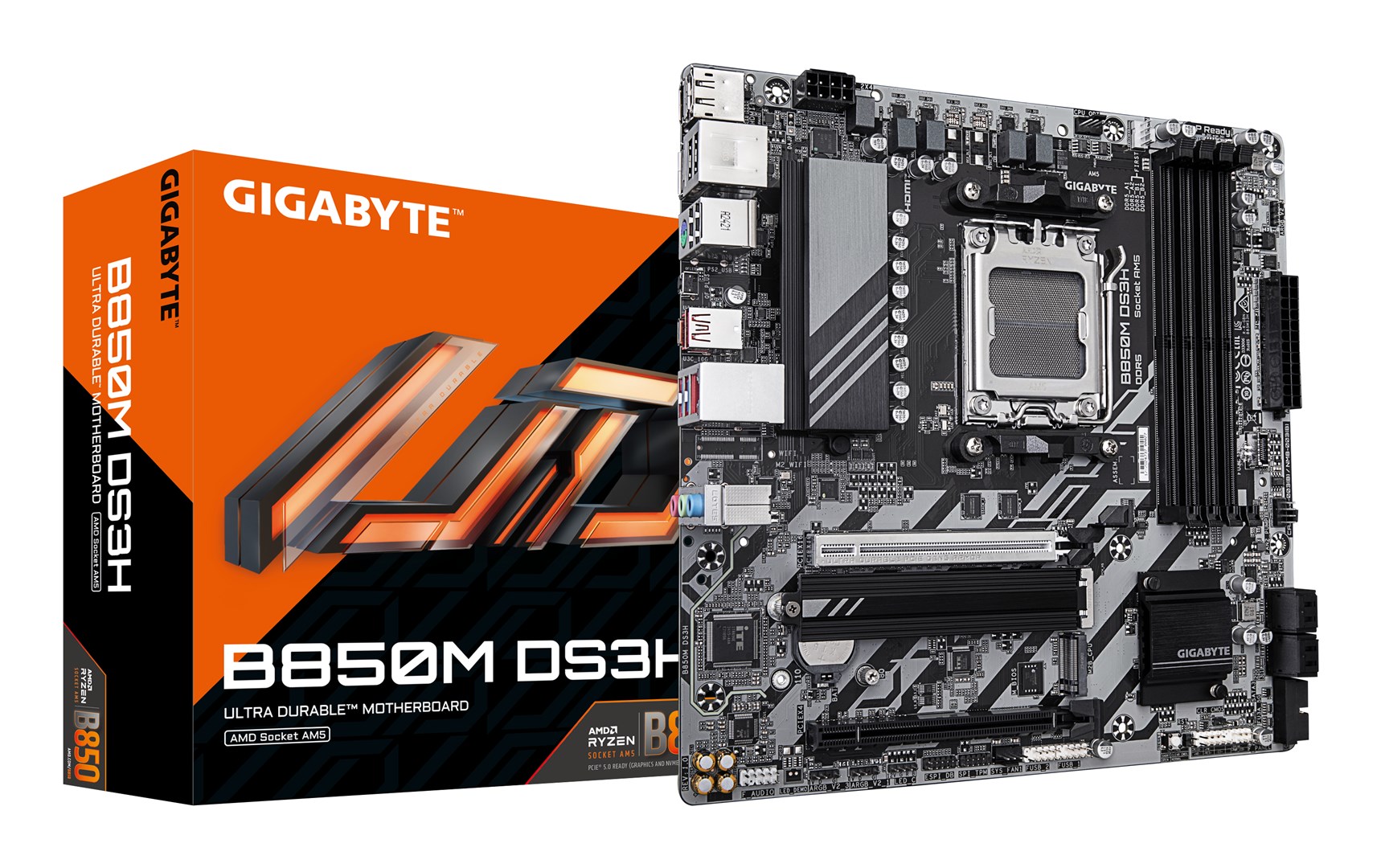

Name: GIGABYTE B850M DS3H Motherboard - AMD Ryzen 9000 Series CPUs, 16+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5 LAN, USB 3.2 Gen 2
Brand: Gigabyte
Price: 195.11 EUR
Availability: InStock

GIGABYTE B850M DS3H Motherboard - AMD Ryzen 9000 Series CPUs, 16+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5 LAN, USB 3.2 Gen 2

-39 %

GIGABYTE B850M DS3H Motherboard - AMD Ryzen 9000 Series CPUs, 16+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5 LAN, USB 3.2 Gen 2

Specifications

Features
Audio chip	Realtek ALC897
Audio output channels	7.1 channels
Component for	PC
Motherboard chipset	AMD B850
Motherboard chipset family	AMD
Motherboard form factor	micro ATX
PC health monitoring	Water cooling, Fan, Temperature, Voltage
Power source type	ATX
Product colour	Bronze
Windows operating systems supported	Windows 11 x64, Windows 10 x64
Graphics
DirectX version	12.0
HDCP	Yes
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	Not supported
Weight & dimensions
Depth	244 mm
Height	35 mm
Width	244 mm
Memory
ECC сompatibility	Non-ECC
Maximum internal memory	256 GB
Maximum internal memory per slot	64 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory clock speed (max)	8200 MHz
Supported memory clock speeds	5600, 7200, 4800, 6000, 4400 MHz, 5200, 7000, 8200 MHz, 7600, 7800, 6600, 6400, 8000, 6200, 6666, 6800
Supported memory types	DDR5-SDRAM
Unbuffered memory	Yes
Processor
Compatible processor series	AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series
Processor manufacturer	AMD
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
