Name: DeepCool PN1000-M power supply unit (R-PNA00M-FC0B-JGEU)
Brand: DEEPCOOL
SKU: skroutz
Price: 142.60 EUR
Availability: InStock

DeepCool PN1000-M power supply unit (R-PNA00M-FC0B-JGEU)

-39 %

DeepCool PN1000-M power supply unit (R-PNA00M-FC0B-JGEU)

Specifications

Design
Cooling type	Active
Fan diameter	13.5 cm
Fan location	Top
Number of fans	1 fan(s)
On/off switch	Yes
Product colour	Black
Packaging content
Cable tie(s) included	Yes
Cables included	AC
Performance
80 PLUS certification	80 PLUS Gold
ATX version	3.1
Bearing technology	FDB
Mean time between failures (MTBF)	100000 h
Power supply unit (PSU) form factor	ATX
Purpose	PC

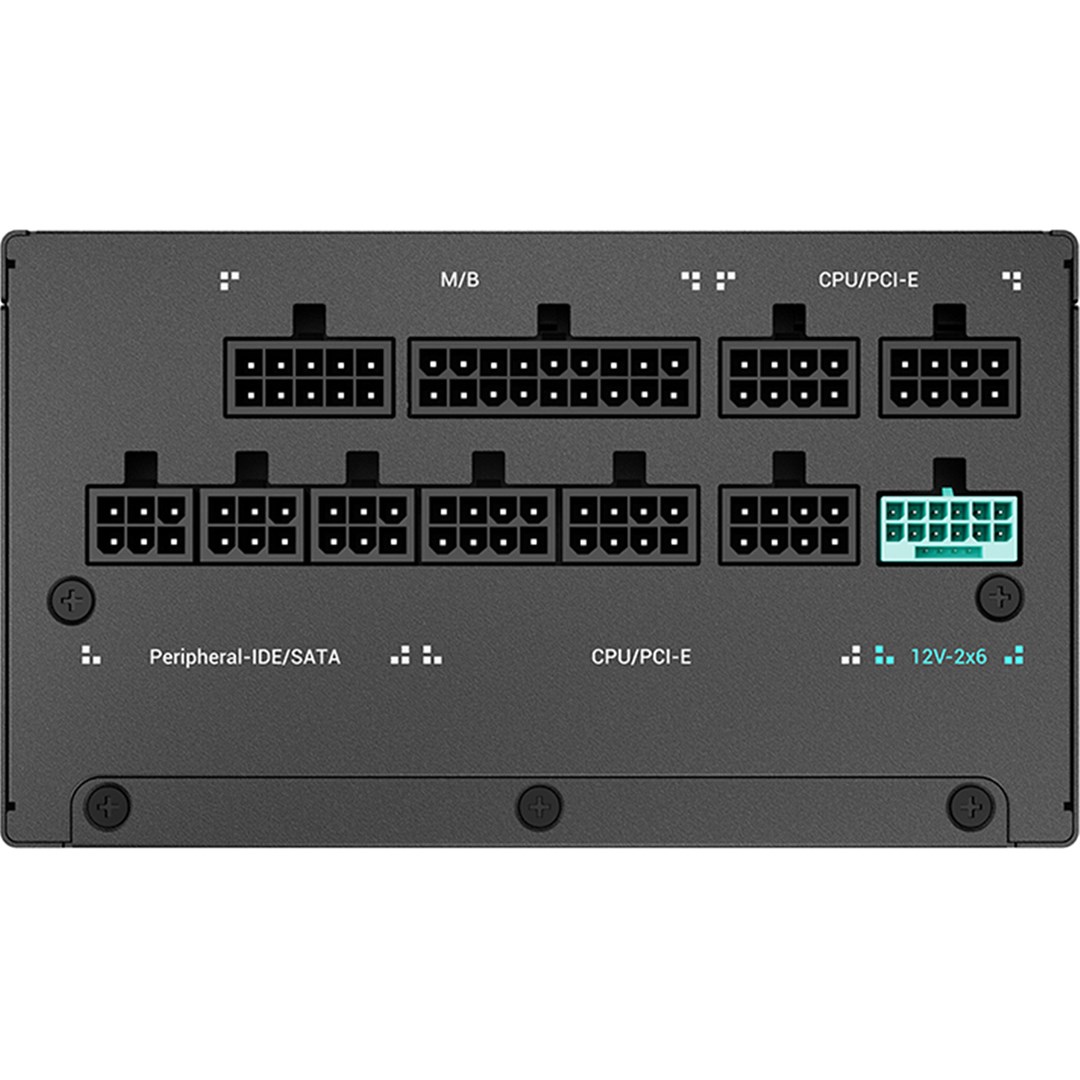

Ports & interfaces
ATX power connector (20+4 pin)	Yes
CPU power cable length	70 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	8
PCI Express power connectors (16-pin)	1
Power
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Combined power (+12V)	999.6 W
Combined power (+3.3V)	120 W
Combined power (+5V)	120 W
Combined power (+5Vsb)	15 W
Efficiency	90%
Hold time	16 ms
Power Factor Correction (PFC) type	Active
Power Good signal delay range	100 - 150 ms
Power protection features	Short circuit, Over voltage, Surge & inrush protection (SIP), Overheating, Surge protection, Over power, Under voltage, No load operation
Total power	1000 W
Weight & dimensions
Depth	150 mm
Height	86 mm
Width	150 mm
