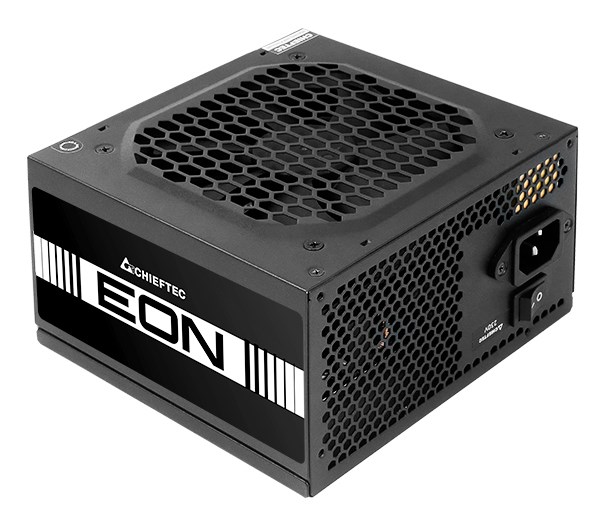

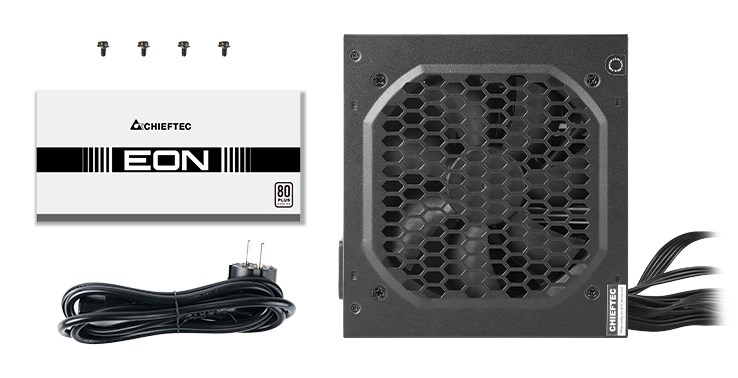

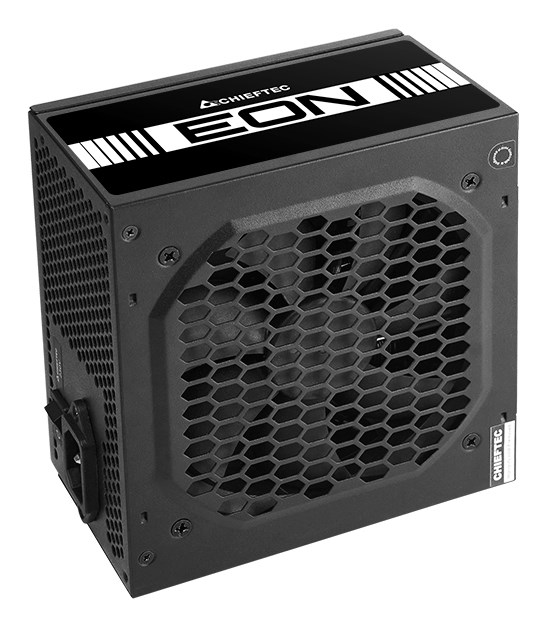

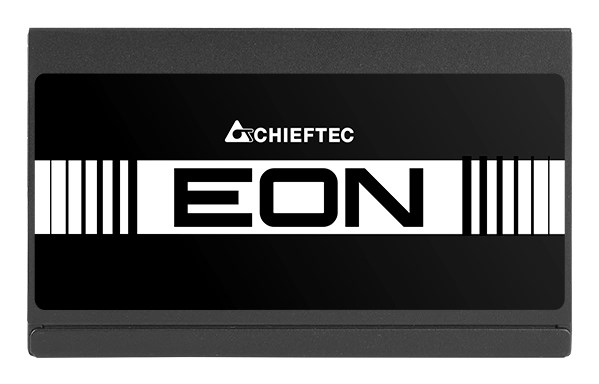

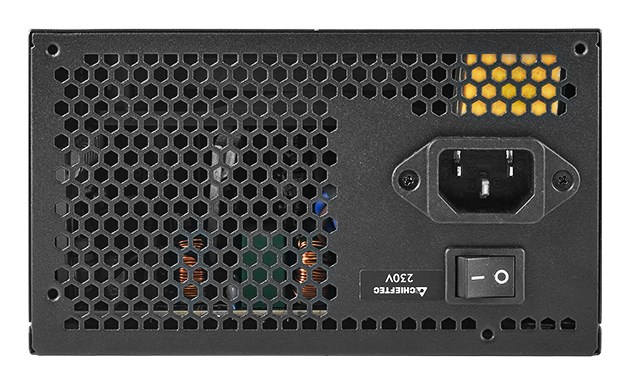

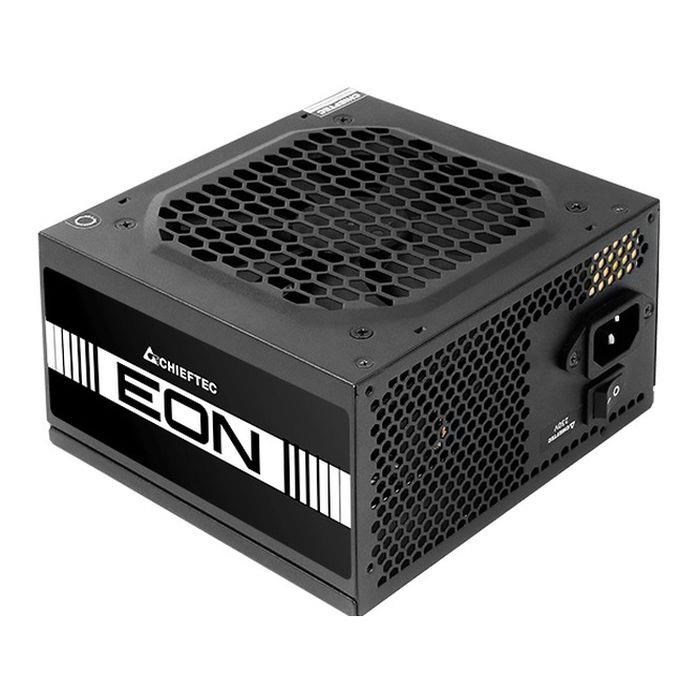

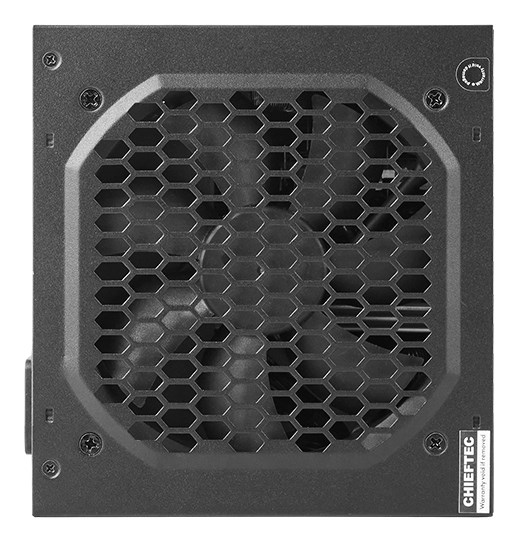

Name: Chieftec EON ZPU-400S power supply unit 400 W 20+4 pin ATX ATX Black
Brand: Chieftec
Price: 58.01 EUR
Availability: InStock

Chieftec EON ZPU-400S power supply unit 400 W 20+4 pin ATX ATX Black

-36 %

Chieftec EON ZPU-400S power supply unit 400 W 20+4 pin ATX ATX Black

Design
Fan diameter	12 cm
On/off switch	Yes
Product colour	Black
Packaging data
Package type	Box
Package weight	1.4 kg
Performance
80 PLUS certification	80 PLUS
ATX version	2.3
Power supply unit (PSU) form factor	ATX
Purpose	PC/Server
Supported motherboard form factors	ATX
Ports & interfaces
Cabling type	Non-Modular
SATA power cable length	550, 600 mm
Power
AC input frequency	50 Hz
AC input voltage	200 - 240 V
Combined power (+5Vsb)	12.5 W
Combined power (-12V)	4.8 W
Input current	3 A
Max output current (+12V1)	30 A
Max output current (+3.3V)	20 A
Max output current (+5V)	20 A
Max output current (+5Vsb)	2.5 A
Max output current (-12V)	0.4 A
Maximum input current (@220V)	3 A
Power factor	0.9
Power Factor Correction (PFC) type	Active
Power protection features	Short circuit, Surge protection, Surge and inrush
Total power	400 W
Weight & dimensions
Depth	140 mm
Height	86 mm
Weight	1.15 kg
Width	150 mm
