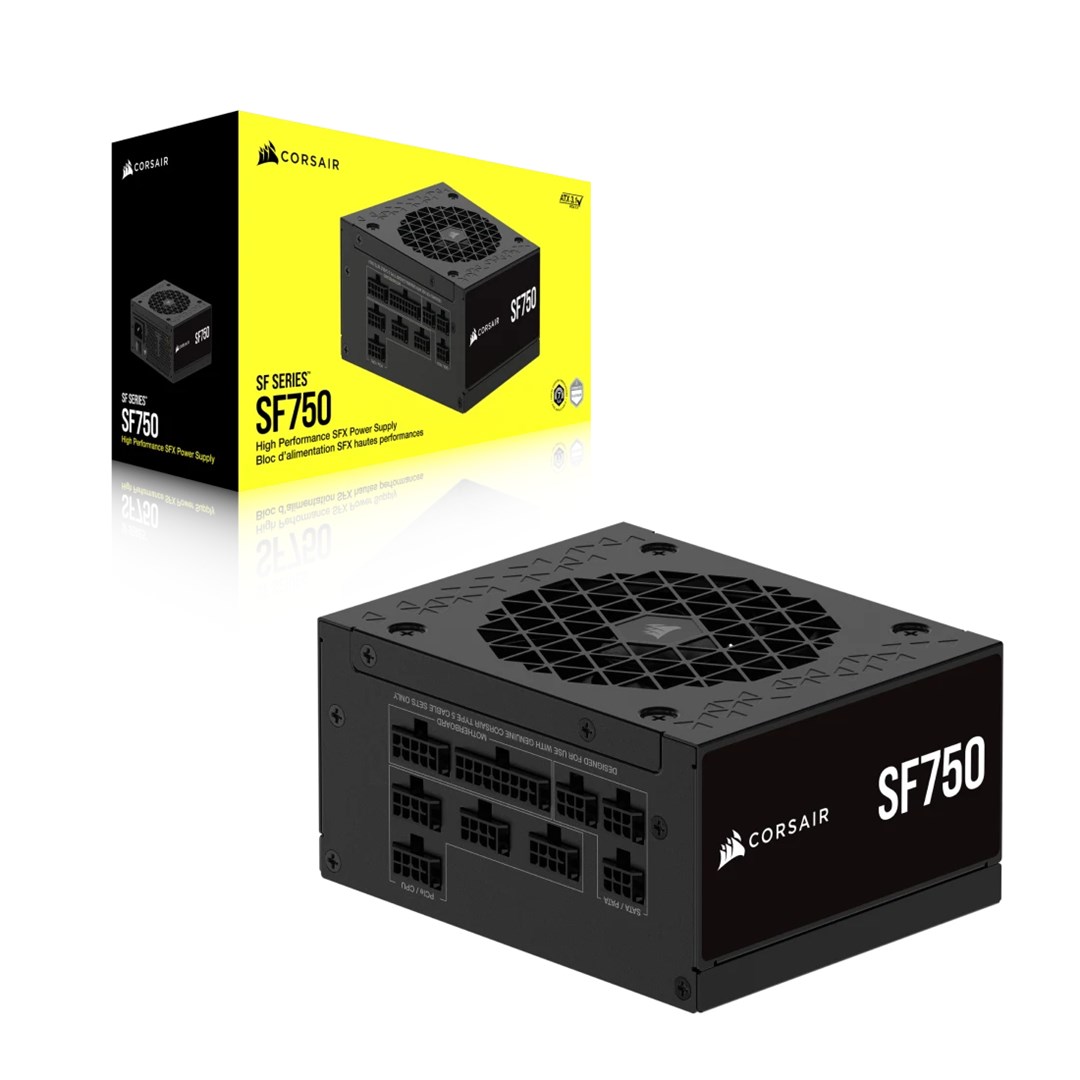

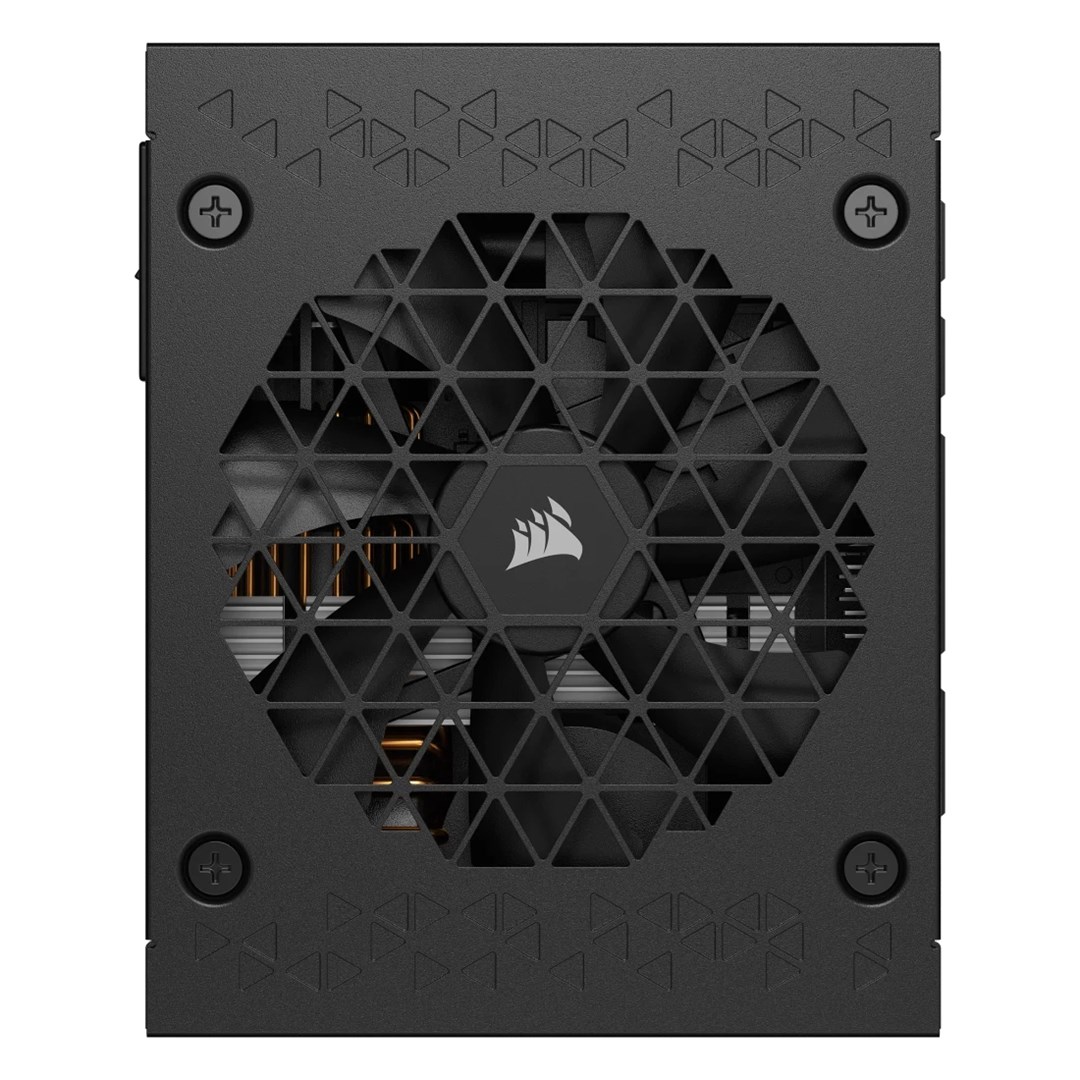

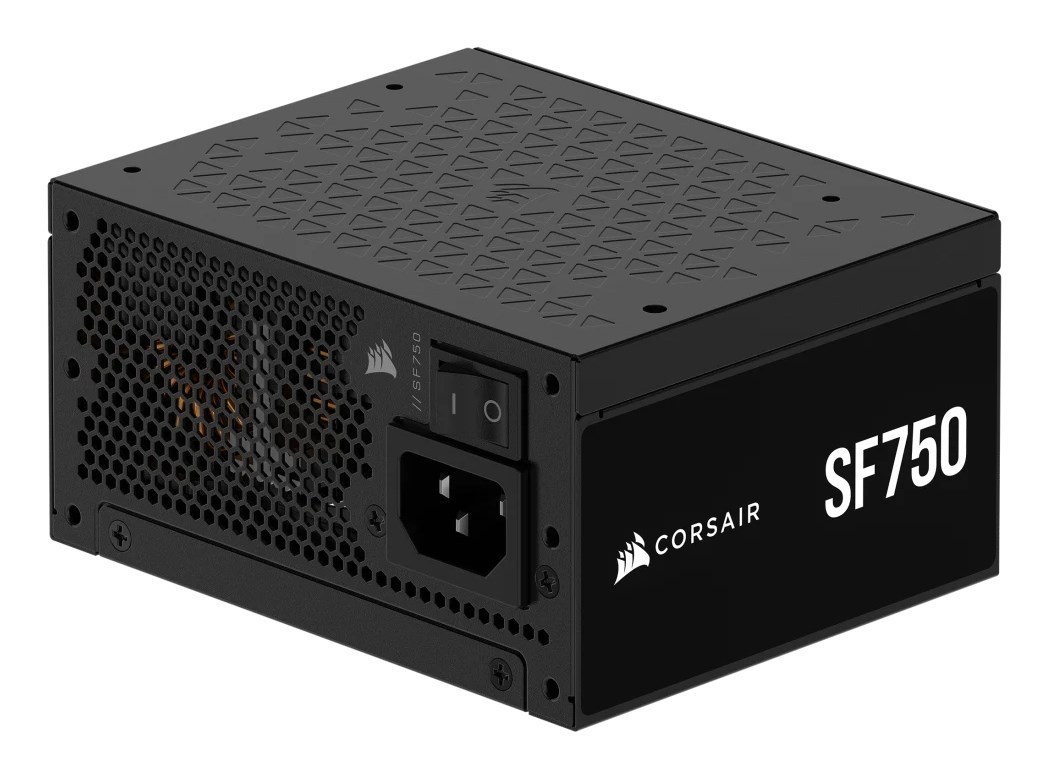

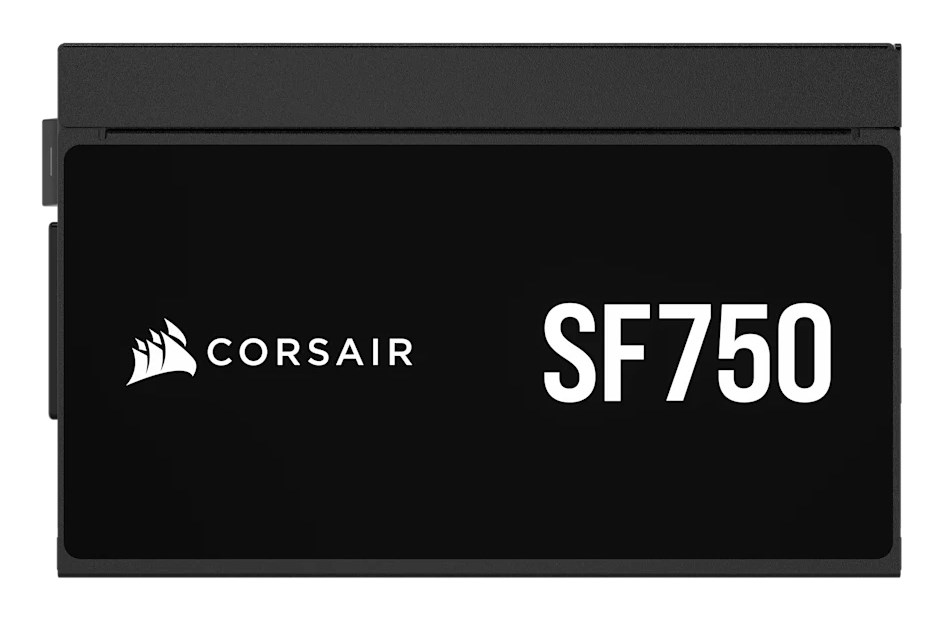

Name: Corsair CP-9020284-EU power supply unit 750 W 24-pin ATX ATX Black
Brand: Corsair
Price: 232.60 EUR
Availability: InStock

Corsair CP-9020284-EU power supply unit 750 W 24-pin ATX ATX Black

-40 %

Corsair CP-9020284-EU power supply unit 750 W 24-pin ATX ATX Black

Design
Cooling type	Active
Fan diameter	9.2 cm
Fan location	Top
Number of fans	1 fan(s)

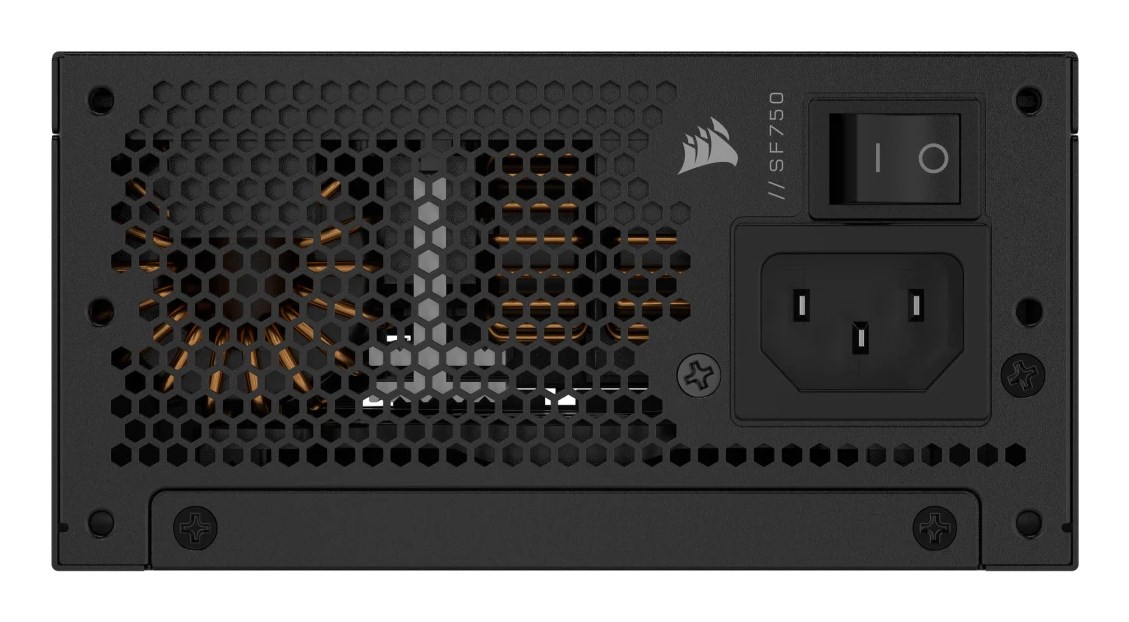

On/off switch	Yes
Product colour	Black
Performance

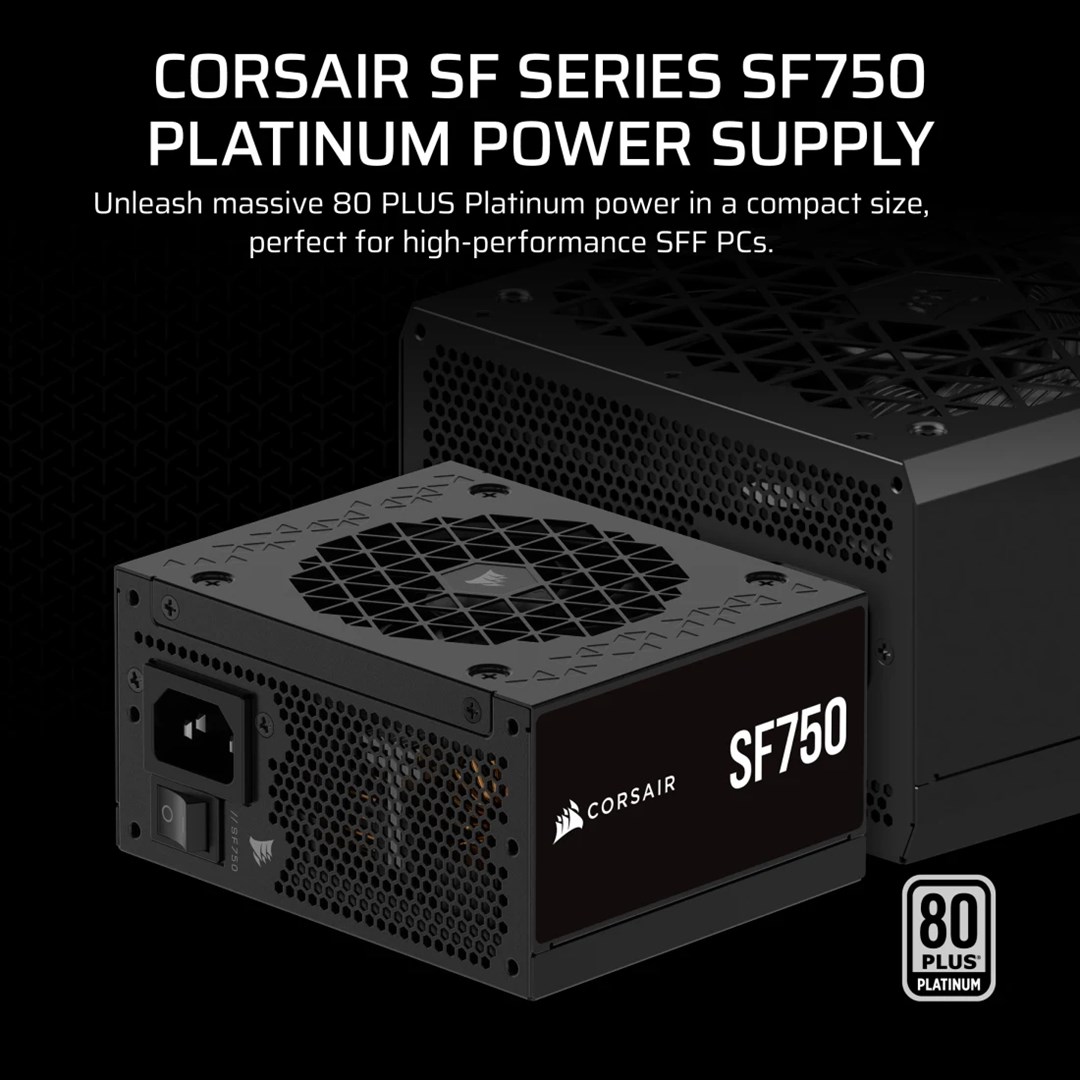

80 PLUS certification	80 PLUS Platinum

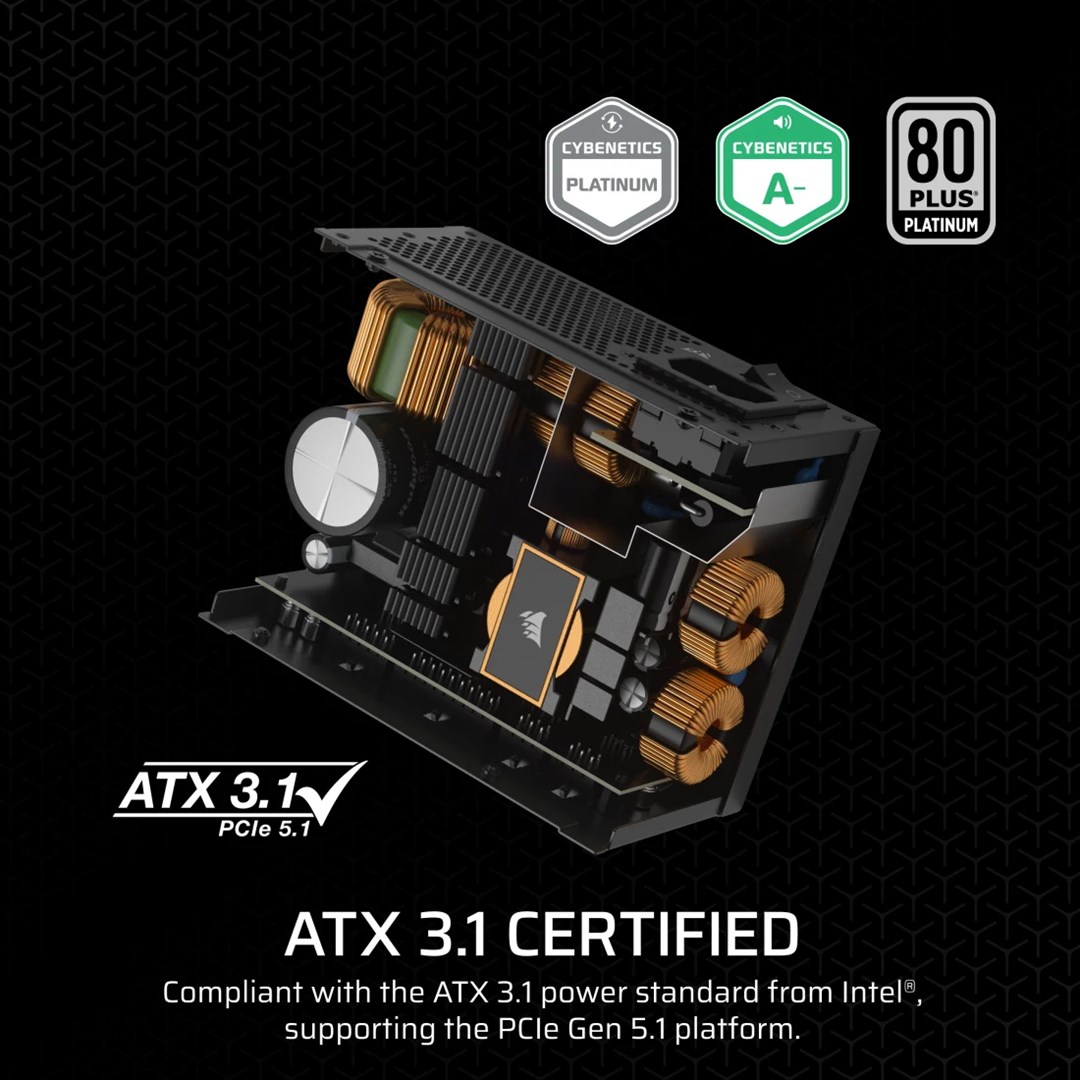

ATX version	3.1
Bearing technology	FDB
Mean time between failures (MTBF)	100000 h
Power supply unit (PSU) form factor	SFX
Purpose	PC

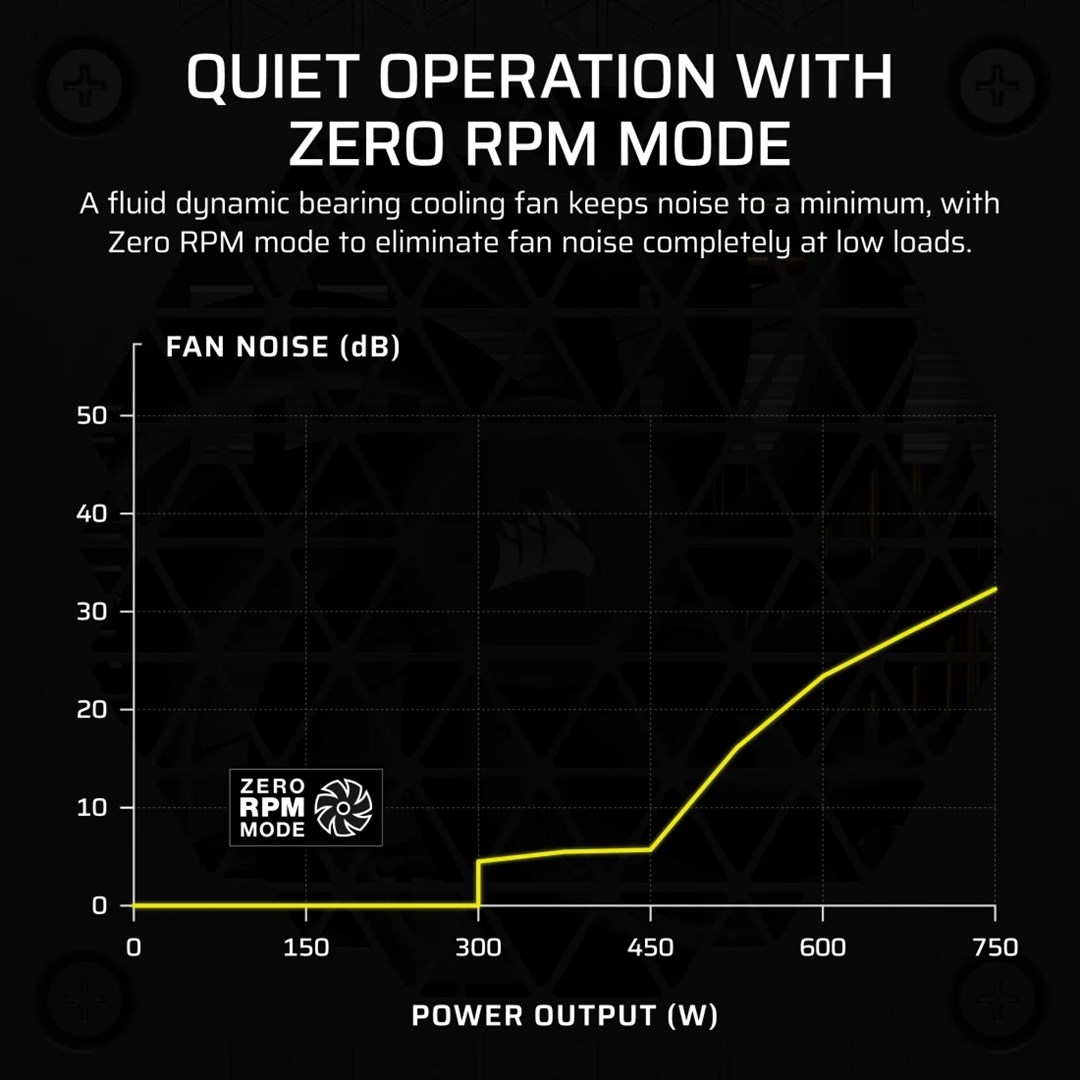

Silent mode	Yes
Ports & interfaces

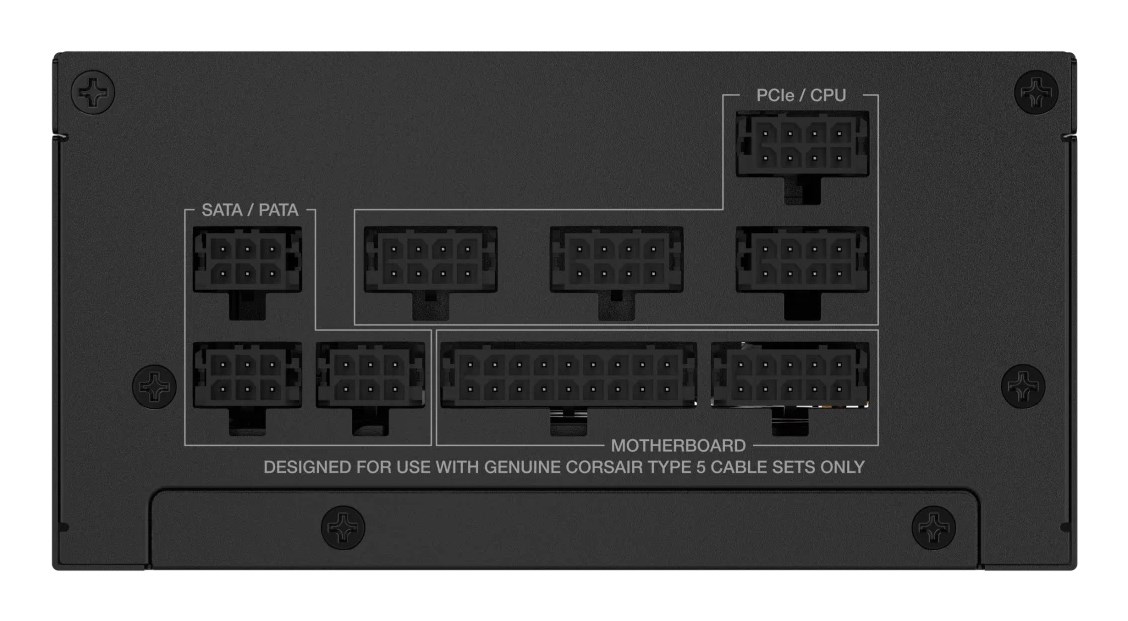

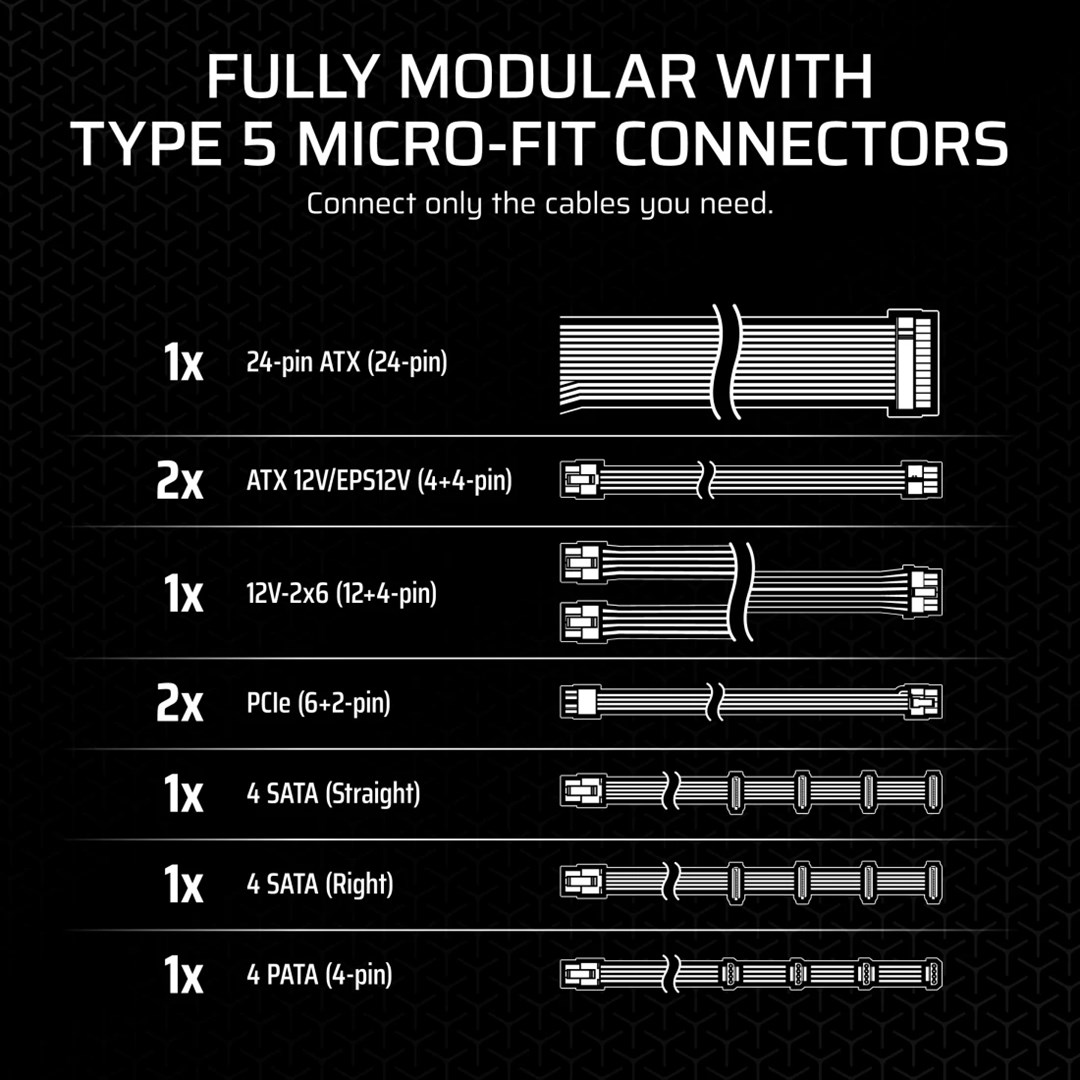

Cabling type	Fully-Modular
Motherboard power cable length	30 cm
Motherboard power connector	24-pin ATX
PCI Express power connectors (6+2 pin)	2
SATA power cable length	445 mm
Power
AC input frequency	47 - 63 Hz
AC input voltage	100 - 240 V
Combined power (+12V)	750 W
Combined power (+3.3V)	130 W
Combined power (+5V)	130 W
Combined power (+5Vsb)	15 W
Input current	10-5 A
Max output current (+12V)	62.5 A
Max output current (+3.3V)	20 A
Max output current (+5V)	20 A
Max output current (+5Vsb)	3 A
Total power	750 W
